Step1: Product

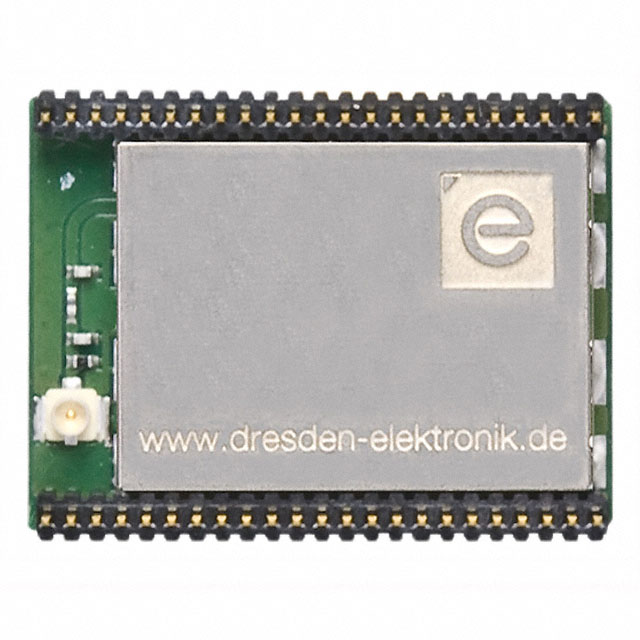

Dresden Elektronik 30974

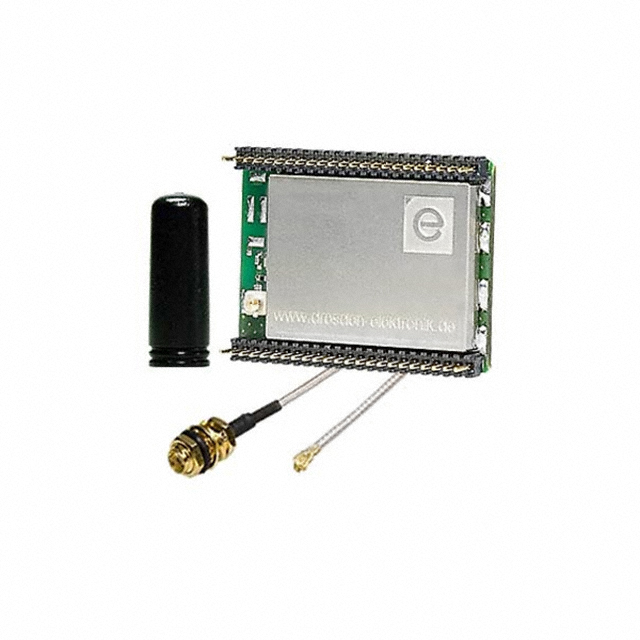

Image shown is a representation only
Manufacturer
Manufacturer No
30974
Package
46-DIP Module (0.800", 20.32mm)
Packaging
Bulk
Description
RF TXRX MOD 802.15.4U.FL TH
Detailed Description
802.15.4 6LoWPAN, Zigbee® Transceiver Module 2.4GHz Antenna Not Included, U.FL Through Hole
DataSheet
Mfr
Dresden Elektronik
Protocol
6LoWPAN, Zigbee®
Data Rate
1Mbps
Frequency
2.4GHz
Packaging
Bulk
Part Status
Obsolete
Sensitivity
-110dBm
Antenna Type
Antenna Not Included, U.FL
Mounting Type
Through Hole
Package / Case
46-DIP Module (0.800", 20.32mm)
Power - Output
10dBm
Voltage - Supply
3V ~ 3.6V
Serial Interfaces
I2C, JTAG, SPI, UART, USB
RF Family/Standard
802.15.4
Utilized IC / Part
MKW22D512V
Current - Receiving
45mA
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
45mA
| Attribute | Value |
|---|---|
| Mfr | Dresden Elektronik |
| Protocol | 6LoWPAN, Zigbee® |
| Data Rate | 1Mbps |
| Frequency | 2.4GHz |
| Packaging | Bulk |
| Part Status | Obsolete |
| Sensitivity | -110dBm |
| Antenna Type | Antenna Not Included, U.FL |
| Mounting Type | Through Hole |
| Package / Case | 46-DIP Module (0.800", 20.32mm) |
| Power - Output | 10dBm |
| Voltage - Supply | 3V ~ 3.6V |
| Serial Interfaces | I2C, JTAG, SPI, UART, USB |
| RF Family/Standard | 802.15.4 |
| Utilized IC / Part | MKW22D512V |
| Current - Receiving | 45mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 85°C |
| Current - Transmitting | 45mA |
