Step1: Product
Dioo Microcircuits Co., Ltd. DIO1520LP10

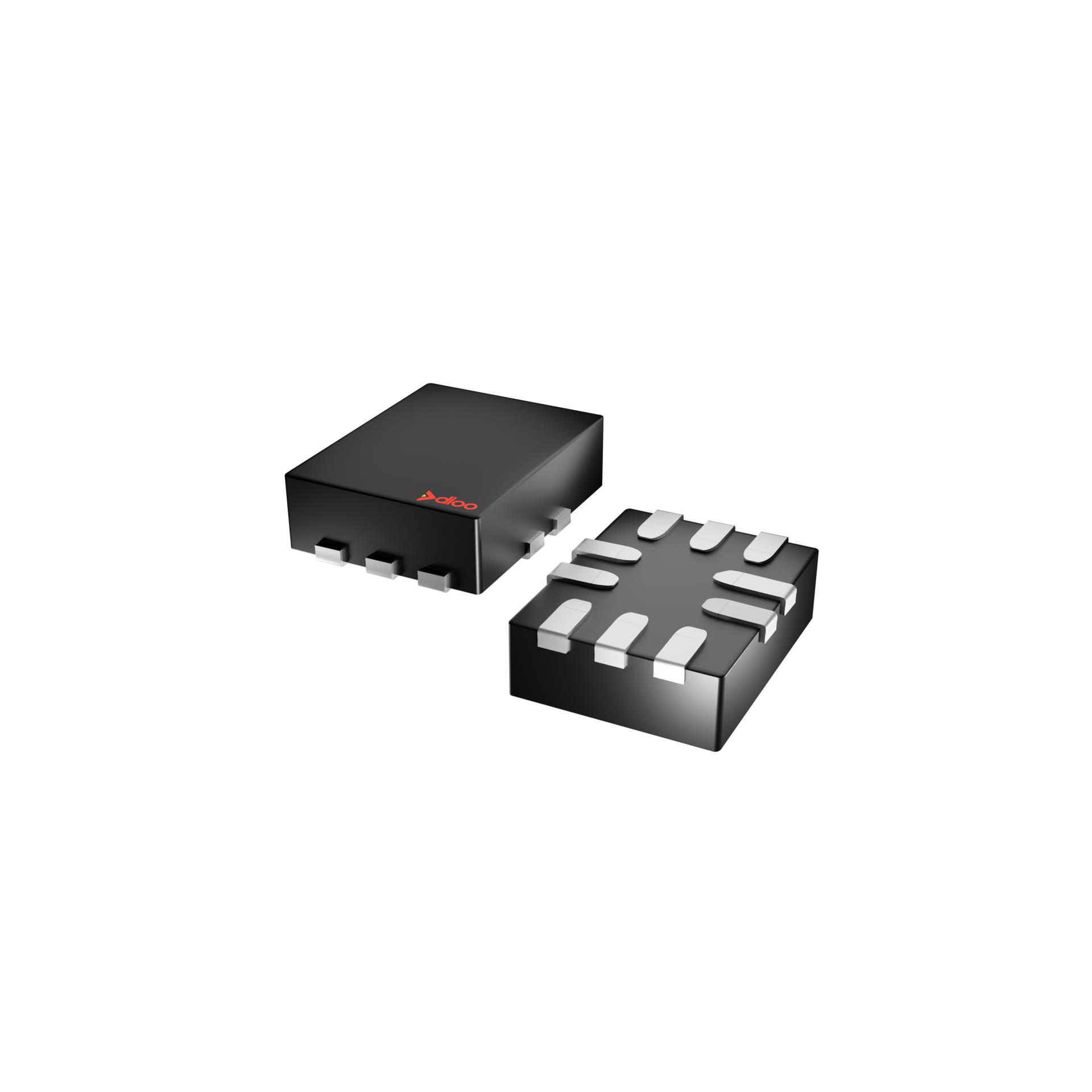

Image shown is a representation only
Manufacturer
Manufacturer No
DIO1520LP10
Package
10-UFQFN
Packaging
Tape & Reel (TR)
Description
0.7 , Dual, SPDT Analog Switch
Detailed Description
2 Circuit IC Switch 2:1 900mOhm 10-DQFN (1.8x1.4)
DataSheet
Crosstalk
-85dB @ 10kHz
Packaging
Tape & Reel (TR)
Part Status
Active
Manufacturer
Dioo Microcircuits Co., Ltd.
Mounting Type
Surface Mount
-3db Bandwidth
300MHz
Package / Case
10-UFQFN
Switch Circuit
SPDT - Open/Closed
Number of Circuits
2
Operating Temperature
-40°C ~ 85°C (TA)
Supplier Device Package
10-DQFN (1.8x1.4)
On-State Resistance (Max)
900mOhm
Switch Time (Ton, Toff) (Max)
1.6µs, 100ns (Typ)
Voltage - Supply, Single (V+)
1.65V ~ 5.5V
Current - Leakage (IS(off)) (Max)
50nA
Multiplexer/Demultiplexer Circuit
2:1
Channel-to-Channel Matching (ΔRon)
20mOhm
| Attribute | Value |
|---|---|
| Crosstalk | -85dB @ 10kHz |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Manufacturer | Dioo Microcircuits Co., Ltd. |
| Mounting Type | Surface Mount |
| -3db Bandwidth | 300MHz |
| Package / Case | 10-UFQFN |
| Switch Circuit | SPDT - Open/Closed |
| Number of Circuits | 2 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 10-DQFN (1.8x1.4) |
| On-State Resistance (Max) | 900mOhm |
| Switch Time (Ton, Toff) (Max) | 1.6µs, 100ns (Typ) |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Current - Leakage (IS(off)) (Max) | 50nA |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ΔRon) | 20mOhm |
