Step1: Product

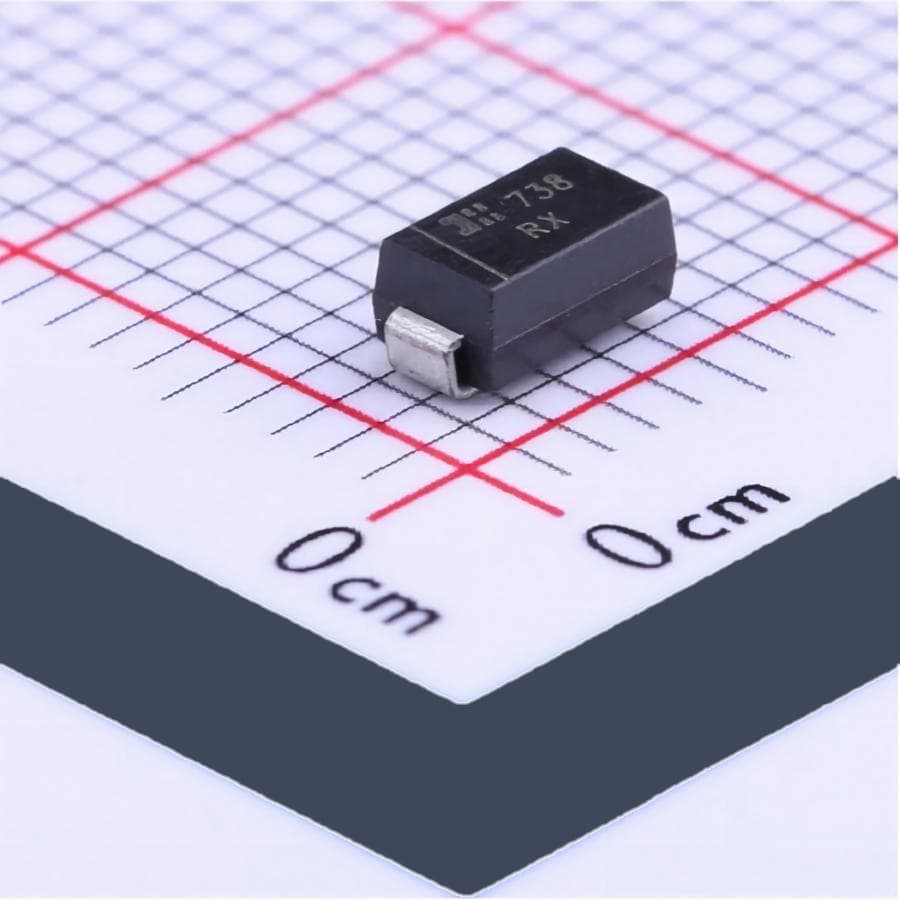

Diodes Incorporated SMAJ90A-13-F
Image shown is a representation only
Manufacturer
Manufacturer No
SMAJ90A-13-F
Quantity
1375
Availability
In Stock
Package
DO-214AC, SMA
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
TVS DIODE 90VWM 146VC SMA
Detailed Description
146V Clamp 2.7A Ipp Tvs Diode Surface Mount SMA
DataSheet
Mfr
Diodes Incorporated
Type
Zener
Grade
Automotive
Series
SMAJ
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Mounting Type
Surface Mount
Package / Case
DO-214AC, SMA
Power - Peak Pulse
400W
Operating Temperature
-55°C ~ 150°C (TJ)
Power Line Protection
No
Supplier Device Package
SMA
Unidirectional Channels
1
Voltage - Breakdown (Min)
100V
Voltage - Clamping (Max) @ Ipp
146V
Voltage - Reverse Standoff (Typ)
90V
Current - Peak Pulse (10/1000µs)
2.7A
| Attribute | Value |
|---|---|
| Mfr | Diodes Incorporated |
| Type | Zener |
| Grade | Automotive |
| Series | SMAJ |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Power - Peak Pulse | 400W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Power Line Protection | No |
| Supplier Device Package | SMA |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 100V |
| Voltage - Clamping (Max) @ Ipp | 146V |
| Voltage - Reverse Standoff (Typ) | 90V |
| Current - Peak Pulse (10/1000µs) | 2.7A |
