Diodes Incorporated SD05C-7

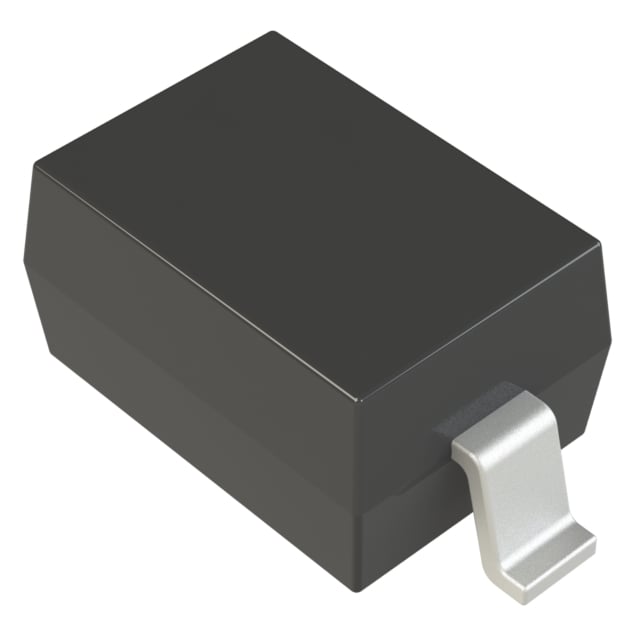

Image shown is a representation only
Manufacturer
Manufacturer No
SD05C-7
Quantity
1570
Availability
In Stock
Package
SC-76, SOD-323
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
TVS DIODE 5.5VWM 16VC SOD323
Detailed Description
16V Clamp 40A (8/20µs) Ipp Tvs Diode Surface Mount SOD-323
DataSheet
Mfr
Diodes Incorporated
Type
Zener
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Mounting Type
Surface Mount
Package / Case
SC-76, SOD-323
Power - Peak Pulse
640W
Base Product Number
SD05
Operating Temperature
-65°C ~ 150°C (TJ)
Power Line Protection
No
Bidirectional Channels
1
Capacitance @ Frequency
200pF @ 1MHz
Supplier Device Package
SOD-323
Voltage - Breakdown (Min)
6V
Voltage - Clamping (Max) @ Ipp
16V
Voltage - Reverse Standoff (Typ)
5.5V (Max)
Current - Peak Pulse (10/1000µs)
40A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | Diodes Incorporated |
| Type | Zener |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Power - Peak Pulse | 640W |
| Base Product Number | SD05 |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Power Line Protection | No |
| Bidirectional Channels | 1 |
| Capacitance @ Frequency | 200pF @ 1MHz |
| Supplier Device Package | SOD-323 |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 16V |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) |
| Current - Peak Pulse (10/1000µs) | 40A (8/20µs) |
