Step1: Product

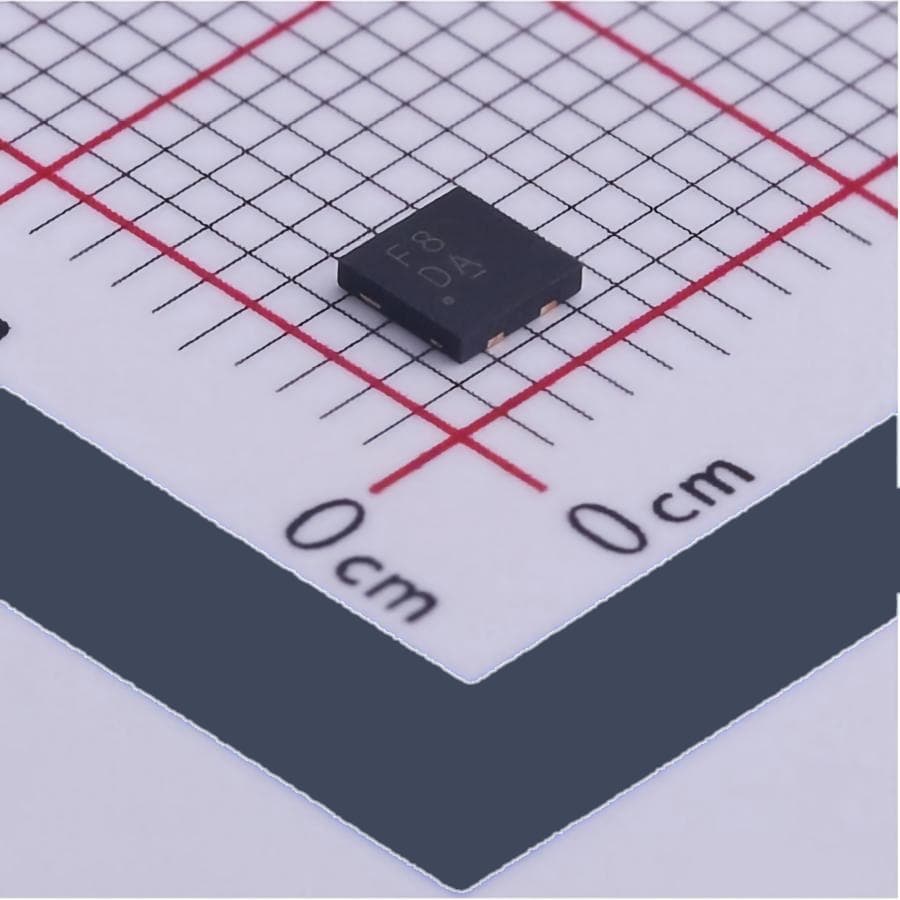

Diodes Incorporated SBR05M100BLP-7

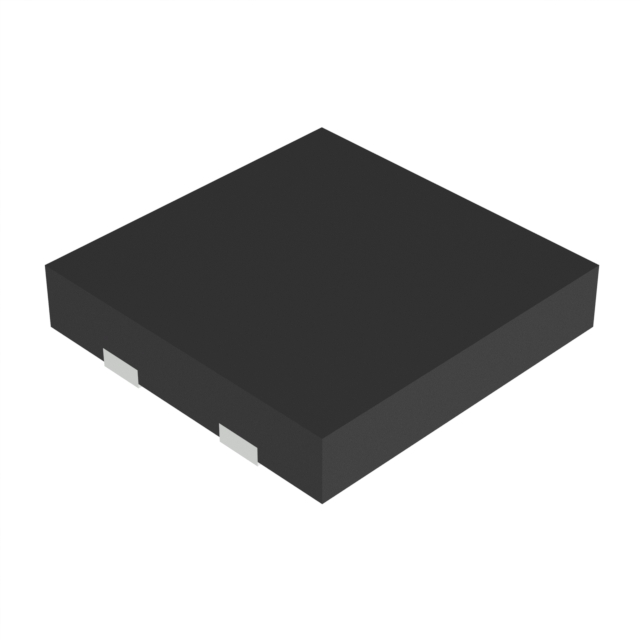

Image shown is a representation only
Manufacturer
Manufacturer No
SBR05M100BLP-7
Quantity
7827
Availability
In Stock
Package
4-PowerUDFN
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
BRIDGE RECT 1P 100V 0.5A DFN3030
Detailed Description
Bridge Rectifier Single Phase Super Barrier 100 V Surface Mount U-DFN3030-4
DataSheet
Series
SBR®
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Diode Type
Single Phase
Technology
Super Barrier
Part Status
Active
Manufacturer
Diodes Incorporated
Mounting Type
Surface Mount
Package / Case
4-PowerUDFN
Base Product Number
SBR05
Operating Temperature
-55°C ~ 150°C (TJ)
Supplier Device Package
U-DFN3030-4
Voltage - Peak Reverse (Max)
100 V
Current - Reverse Leakage @ Vr
25 µA @ 100 V
Current - Average Rectified (Io)
500 mA
Voltage - Forward (Vf) (Max) @ If
630 mV @ 500 mA
| Attribute | Value |
|---|---|
| Series | SBR® |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Diode Type | Single Phase |
| Technology | Super Barrier |
| Part Status | Active |
| Manufacturer | Diodes Incorporated |
| Mounting Type | Surface Mount |
| Package / Case | 4-PowerUDFN |
| Base Product Number | SBR05 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Supplier Device Package | U-DFN3030-4 |
| Voltage - Peak Reverse (Max) | 100 V |
| Current - Reverse Leakage @ Vr | 25 µA @ 100 V |
| Current - Average Rectified (Io) | 500 mA |
| Voltage - Forward (Vf) (Max) @ If | 630 mV @ 500 mA |
Purchase & Inquiry
Purchase
You may place an order without registering to
We strongly suggest you sign in before purchasing as you can track your order in real time.
Means of Payment
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
RFQ (Request for Quotations)
It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.
IMPORTANT NOTICE
1.You'l receive an order information email in your inbox (Please remember to check the spam folder if you didn't hear from us)
2.Since inventories and prices may fuctuate to some extent, the sales manager is going to reconfirm the order and let you know
Packing
Step2: Vacuum Packaging
Step3: Anti-StaticBag
Step4: Individual Packaging
Step5: Packaging Boxes
Shipping Information
| Shipping Type | Ship Fee | Lead Time | |
|---|---|---|---|
 | DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
 | Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
 | UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
 | EMS | $20.00-$40.00 (0.50 KG) | 2-5 days |
Processing Time: Shipping fees vary depending on the destination region and country.
