Step1: Product
Diodes Incorporated PI5A4158ZAEX

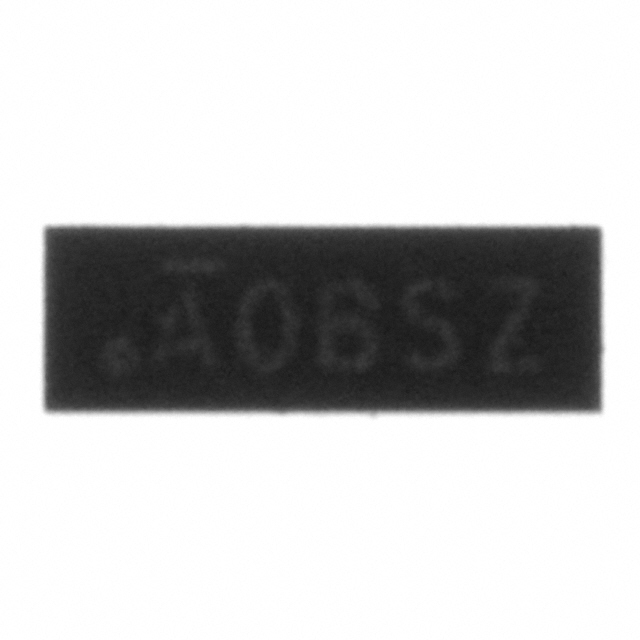

Image shown is a representation only
Manufacturer
Manufacturer No
PI5A4158ZAEX
Package
12-WFDFN
Packaging
Tape & Reel (TR)
Description
IC SWITCH SPDT X 2 1.2OHM 12TDFN
Detailed Description
2 Circuit IC Switch 2:1 1.2Ohm 12-TDFN (3x1)
Datasheet
Crosstalk
-70dB @ 1MHz
Packaging
Tape & Reel (TR)
Manufacturer
Diodes Incorporated
Mounting Type
Surface Mount
-3db Bandwidth
150MHz
Package / Case
12-WFDFN
Switch Circuit
SPDT
Charge Injection
35pC
Number of Circuits
2
Base Product Number
PI5A4158
Operating Temperature
-40°C ~ 85°C (TA)
Supplier Device Package
12-TDFN (3x1)
On-State Resistance (Max)
1.2Ohm
Switch Time (Ton, Toff) (Max)
18ns, 20ns
Voltage - Supply, Single (V+)
1.65V ~ 5.5V
Current - Leakage (IS(off)) (Max)
20nA
Multiplexer/Demultiplexer Circuit
2:1
Channel-to-Channel Matching (ΔRon)
10mOhm
Channel Capacitance (CS(off), CD(off))
3.5pF
| Attribute | Value |
|---|---|
| Crosstalk | -70dB @ 1MHz |
| Packaging | Tape & Reel (TR) |
| Manufacturer | Diodes Incorporated |
| Mounting Type | Surface Mount |
| -3db Bandwidth | 150MHz |
| Package / Case | 12-WFDFN |
| Switch Circuit | SPDT |
| Charge Injection | 35pC |
| Number of Circuits | 2 |
| Base Product Number | PI5A4158 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 12-TDFN (3x1) |
| On-State Resistance (Max) | 1.2Ohm |
| Switch Time (Ton, Toff) (Max) | 18ns, 20ns |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Current - Leakage (IS(off)) (Max) | 20nA |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ΔRon) | 10mOhm |
| Channel Capacitance (CS(off), CD(off)) | 3.5pF |
