Diodes Incorporated PI5A101W

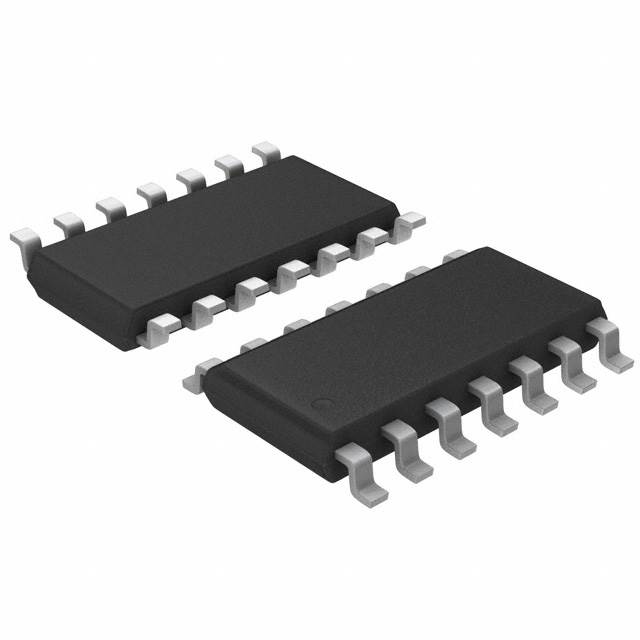

Image shown is a representation only
Manufacturer
Manufacturer No
PI5A101W
Package
14-SOIC (0.154", 3.90mm Width)
Packaging
Tube
Description
IC SWITCH SPST-NCX4 10OHM 14SOIC
Detailed Description
4 Circuit IC Switch 1:1 10Ohm 14-SOIC
DataSheet
Crosstalk
-92dB @ 10MHz
Packaging
Tube
Part Status
Obsolete
Manufacturer
Diodes Incorporated
Mounting Type
Surface Mount
-3db Bandwidth
230MHz
Package / Case
14-SOIC (0.154", 3.90mm Width)
Switch Circuit
SPST - NC
Charge Injection
7pC
Number of Circuits
4
Base Product Number
PI5A101
Operating Temperature
-40°C ~ 85°C (TA)
Supplier Device Package
14-SOIC
On-State Resistance (Max)
10Ohm
Switch Time (Ton, Toff) (Max)
15ns, 7ns
Voltage - Supply, Single (V+)
2V ~ 6V
Current - Leakage (IS(off)) (Max)
50pA (Typ)
Multiplexer/Demultiplexer Circuit
1:1
Channel-to-Channel Matching (ΔRon)
900mOhm
Channel Capacitance (CS(off), CD(off))
8pF, 8pF
| Attribute | Value |
|---|---|
| Crosstalk | -92dB @ 10MHz |
| Packaging | Tube |
| Part Status | Obsolete |
| Manufacturer | Diodes Incorporated |
| Mounting Type | Surface Mount |
| -3db Bandwidth | 230MHz |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Switch Circuit | SPST - NC |
| Charge Injection | 7pC |
| Number of Circuits | 4 |
| Base Product Number | PI5A101 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 14-SOIC |
| On-State Resistance (Max) | 10Ohm |
| Switch Time (Ton, Toff) (Max) | 15ns, 7ns |
| Voltage - Supply, Single (V+) | 2V ~ 6V |
| Current - Leakage (IS(off)) (Max) | 50pA (Typ) |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ΔRon) | 900mOhm |
| Channel Capacitance (CS(off), CD(off)) | 8pF, 8pF |
