Step1: Product

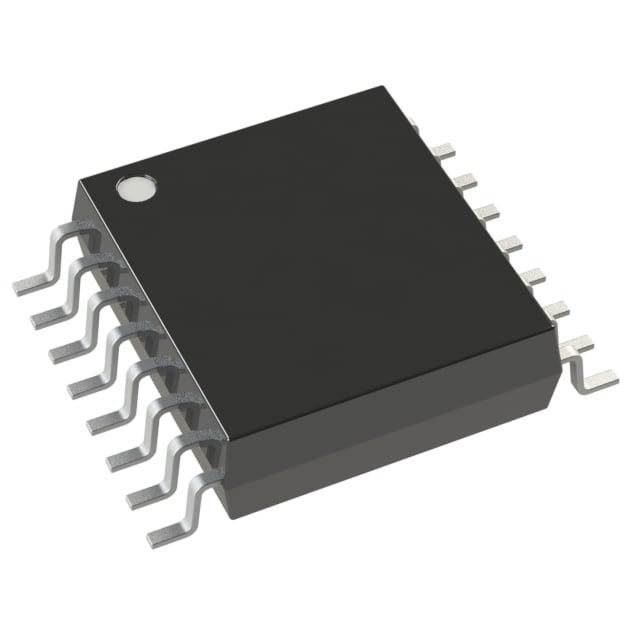

Diodes Incorporated PI3USB14-ALEX
Image shown is a representation only
Manufacturer
Manufacturer No
PI3USB14-ALEX
Quantity
2310
Availability
In Stock
Package
16-TSSOP (0.173", 4.40mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC USB SWITCH 4:1 16TSSOP
Detailed Description
USB Switch IC 2 Channel 16-TSSOP
DataSheet
Features
USB 2.0
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Applications
USB
Manufacturer
Diodes Incorporated
Mounting Type
Surface Mount
-3db Bandwidth
815MHz
Package / Case
16-TSSOP (0.173", 4.40mm Width)
Number of Channels
2
Base Product Number
PI3USB14
Operating Temperature
-40°C ~ 85°C (TA)
Supplier Device Package
16-TSSOP
On-State Resistance (Max)
8Ohm
Voltage - Supply, Single (V+)
3.3V
Multiplexer/Demultiplexer Circuit
4:1
| Attribute | Value |
|---|---|
| Features | USB 2.0 |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Applications | USB |
| Manufacturer | Diodes Incorporated |
| Mounting Type | Surface Mount |
| -3db Bandwidth | 815MHz |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Number of Channels | 2 |
| Base Product Number | PI3USB14 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 16-TSSOP |
| On-State Resistance (Max) | 8Ohm |
| Voltage - Supply, Single (V+) | 3.3V |
| Multiplexer/Demultiplexer Circuit | 4:1 |
