Step1: Product
Diodes Incorporated MMBT2222A-7-F

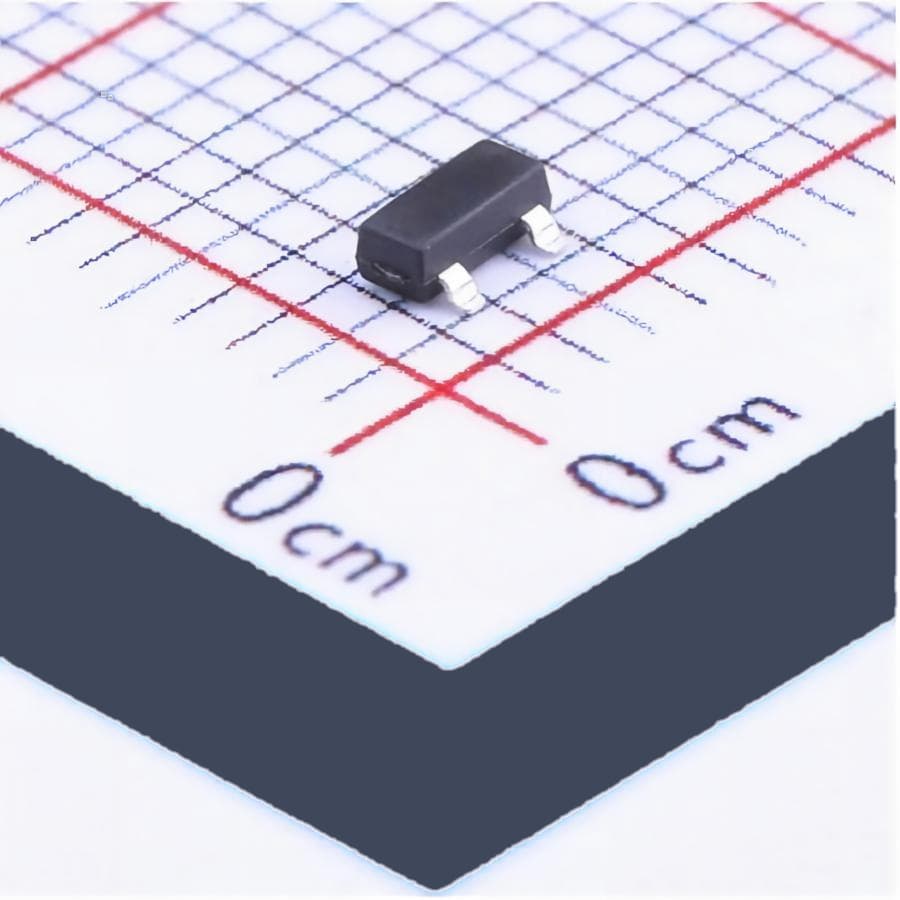

Image shown is a representation only
Manufacturer
Manufacturer No
MMBT2222A-7-F
Quantity
53030
Availability
In Stock
Package
TO-236-3, SC-59, SOT-23-3
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
TRANS NPN 40V 0.6A SOT-23-3
Detailed Description
Bipolar (BJT) Transistor NPN 40 V 600 mA 300MHz 310 mW Surface Mount SOT-23-3
DataSheet
Mfr
Diodes Incorporated
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Power - Max
310 mW
Mounting Type
Surface Mount
Package / Case
TO-236-3, SC-59, SOT-23-3
Transistor Type
NPN
Base Product Number
MMBT2222
Operating Temperature
-55°C ~ 150°C (TJ)
Frequency - Transition
300MHz
Supplier Device Package
SOT-23-3
Vce Saturation (Max) @ Ib, Ic
1V @ 50mA, 500mA
Current - Collector (Ic) (Max)
600 mA
Current - Collector Cutoff (Max)
10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce
100 @ 150mA, 10V
Voltage - Collector Emitter Breakdown (Max)
40 V
| Attribute | Value |
|---|---|
| Mfr | Diodes Incorporated |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Power - Max | 310 mW |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Transistor Type | NPN |
| Base Product Number | MMBT2222 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Frequency - Transition | 300MHz |
| Supplier Device Package | SOT-23-3 |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 50mA, 500mA |
| Current - Collector (Ic) (Max) | 600 mA |
| Current - Collector Cutoff (Max) | 10nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 10V |
| Voltage - Collector Emitter Breakdown (Max) | 40 V |
