Step1: Product

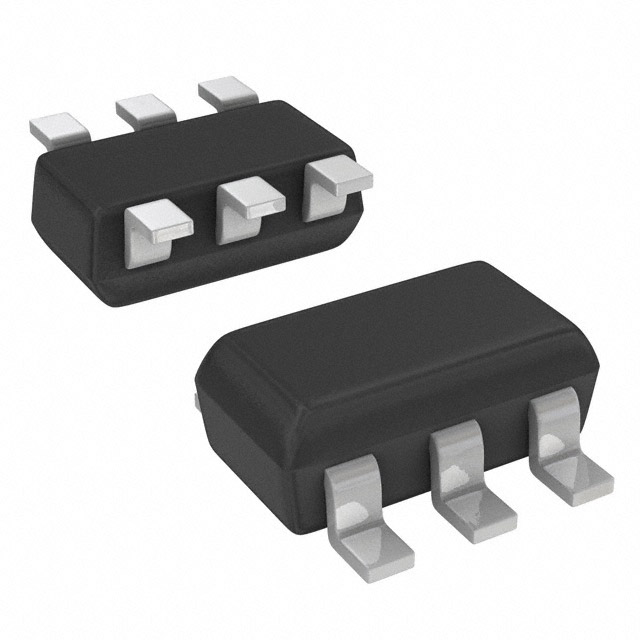

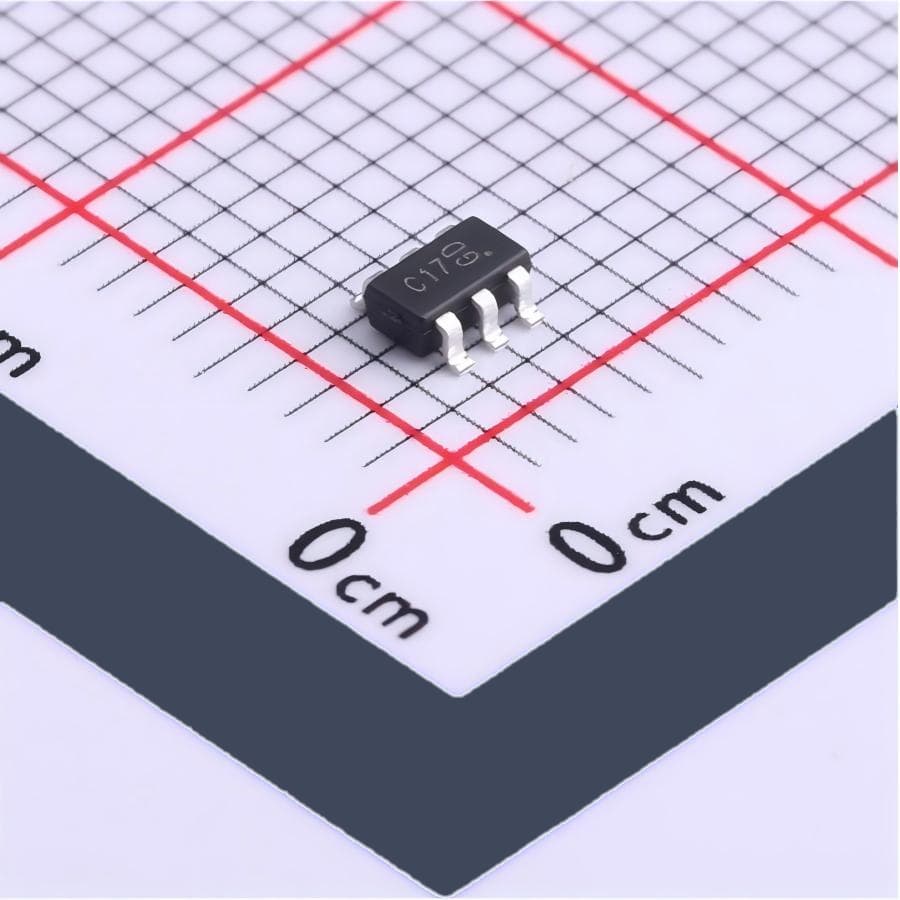

Diodes Incorporated DCX124EK-7-F
Image shown is a representation only
Manufacturer
Manufacturer No
DCX124EK-7-F
Quantity
5540
Availability
In Stock
Package
SC-74, SOT-457
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
TRANS PREBIAS 1NPN 1PNP SC-74R
Detailed Description
Pre-Biased Bipolar Transistor (BJT) 1 NPN, 1 PNP - Pre-Biased (Dual) 50V 100mA 250MHz 300mW Surface Mount SC-74R
DataSheet
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Power - Max
300mW
Manufacturer
Diodes Incorporated
Mounting Type
Surface Mount
Package / Case
SC-74, SOT-457
Transistor Type
1 NPN, 1 PNP - Pre-Biased (Dual)
Base Product Number
DCX124
Resistor - Base (R1)
22kOhms
Frequency - Transition
250MHz
Supplier Device Package
SC-74R
Resistor - Emitter Base (R2)
22kOhms
Vce Saturation (Max) @ Ib, Ic
300mV @ 500µA, 10mA
Current - Collector (Ic) (Max)
100mA
Current - Collector Cutoff (Max)
500nA
DC Current Gain (hFE) (Min) @ Ic, Vce
80 @ 5mA, 5V
Voltage - Collector Emitter Breakdown (Max)
50V
| Attribute | Value |
|---|---|
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Power - Max | 300mW |
| Manufacturer | Diodes Incorporated |
| Mounting Type | Surface Mount |
| Package / Case | SC-74, SOT-457 |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Base Product Number | DCX124 |
| Resistor - Base (R1) | 22kOhms |
| Frequency - Transition | 250MHz |
| Supplier Device Package | SC-74R |
| Resistor - Emitter Base (R2) | 22kOhms |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500µA, 10mA |
| Current - Collector (Ic) (Max) | 100mA |
| Current - Collector Cutoff (Max) | 500nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 5V |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
