Diodes Incorporated BAW56HDW-13

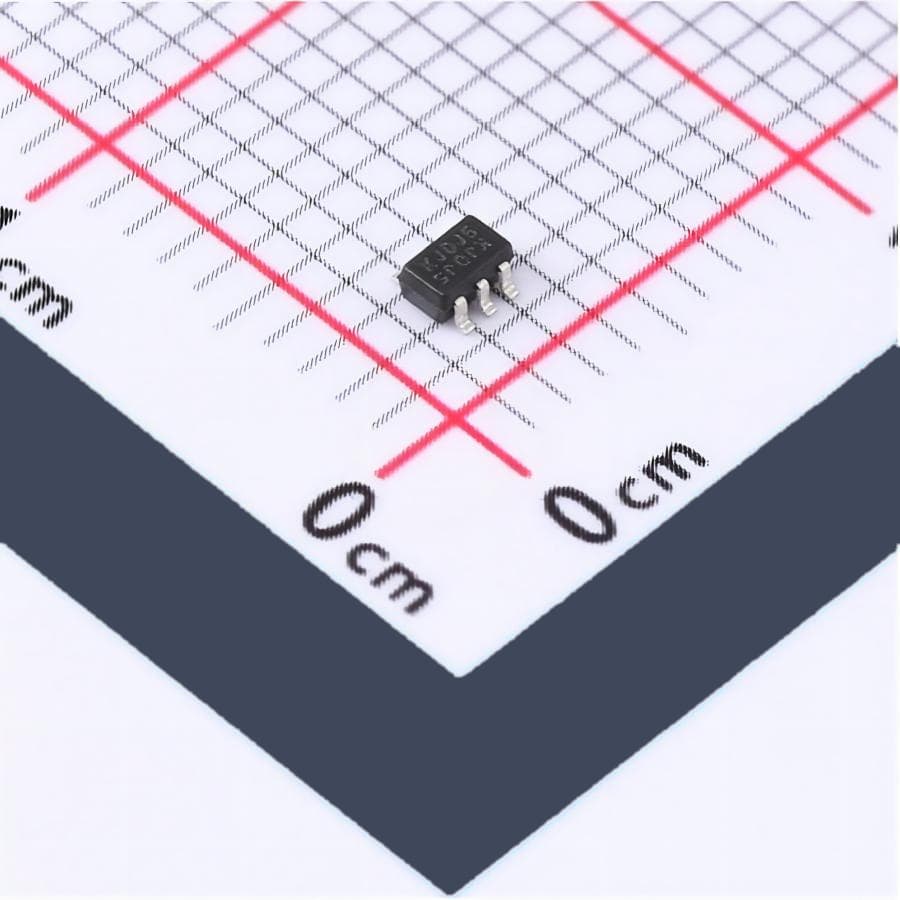

Image shown is a representation only
Manufacturer
Manufacturer No
BAW56HDW-13
Quantity
4575
Availability
In Stock
Package
6-TSSOP, SC-88, SOT-363
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
DIODE ARRAY GP 100V 250MA SOT363
Detailed Description
Diode Array 2 Pair Common Anode 100 V 250mA (DC) Surface Mount 6-TSSOP, SC-88, SOT-363
DataSheet
Grade
Automotive
Speed
Fast Recovery =< 500ns, > 200mA (Io)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
Standard
Part Status
Active
Manufacturer
Diodes Incorporated
Mounting Type
Surface Mount
Qualification
AEC-Q101
Package / Case
6-TSSOP, SC-88, SOT-363
Base Product Number
BAW56
Diode Configuration
2 Pair Common Anode
Supplier Device Package
SOT-363
Reverse Recovery Time (trr)
4 ns
Current - Reverse Leakage @ Vr
500 nA @ 80 V
Voltage - DC Reverse (Vr) (Max)
100 V
Operating Temperature - Junction
-65°C ~ 155°C
Voltage - Forward (Vf) (Max) @ If
1.25 V @ 150 mA
Current - Average Rectified (Io) (per Diode)
250mA (DC)
| Attribute | Value |
|---|---|
| Grade | Automotive |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | Standard |
| Part Status | Active |
| Manufacturer | Diodes Incorporated |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Base Product Number | BAW56 |
| Diode Configuration | 2 Pair Common Anode |
| Supplier Device Package | SOT-363 |
| Reverse Recovery Time (trr) | 4 ns |
| Current - Reverse Leakage @ Vr | 500 nA @ 80 V |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Operating Temperature - Junction | -65°C ~ 155°C |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Current - Average Rectified (Io) (per Diode) | 250mA (DC) |
