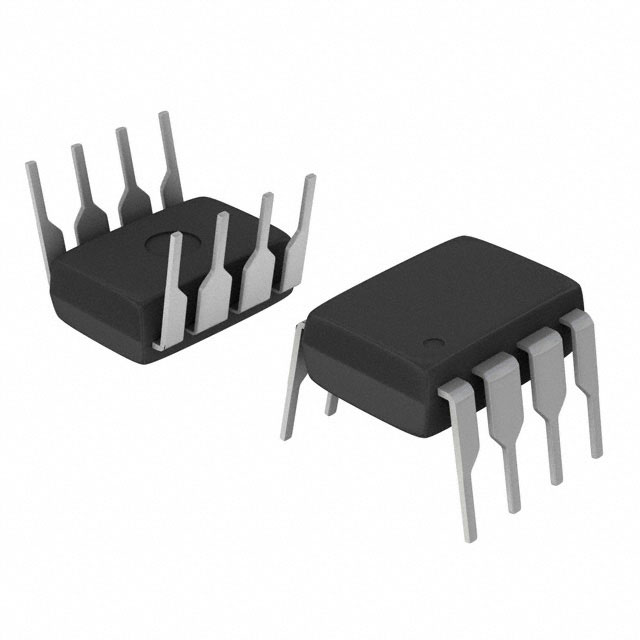

Diodes Incorporated AP3101P-G1
Image shown is a representation only
Manufacturer
Manufacturer No
AP3101P-G1
Package
8-DIP (0.300", 7.62mm)
Packaging
Tube
Description
IC PWM CONTROLLER SO-8
Detailed Description
Regulator Positive Output DC-DC Controller IC 8-PDIP
DataSheet
Packaging
Tube
Clock Sync
No
Output Type
PWM
Part Status
Obsolete
Manufacturer
Diodes Incorporated
Mounting Type
Through Hole
Package / Case
8-DIP (0.300", 7.62mm)
Control Features
Current Limit, Frequency Control
Duty Cycle (Max)
90%
Number of Outputs
1
Base Product Number
AP3101
Output Configuration
Positive
Frequency - Switching
65kHz
Operating Temperature
-40°C ~ 85°C (TA)
Synchronous Rectifier
Yes
Supplier Device Package
8-PDIP
Voltage - Supply (Vcc/Vdd)
20V
| Attribute | Value |
|---|---|
| Packaging | Tube |
| Clock Sync | No |
| Output Type | PWM |
| Part Status | Obsolete |
| Manufacturer | Diodes Incorporated |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Control Features | Current Limit, Frequency Control |
| Duty Cycle (Max) | 90% |
| Number of Outputs | 1 |
| Base Product Number | AP3101 |
| Output Configuration | Positive |
| Frequency - Switching | 65kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Synchronous Rectifier | Yes |
| Supplier Device Package | 8-PDIP |
| Voltage - Supply (Vcc/Vdd) | 20V |
