Step1: Product

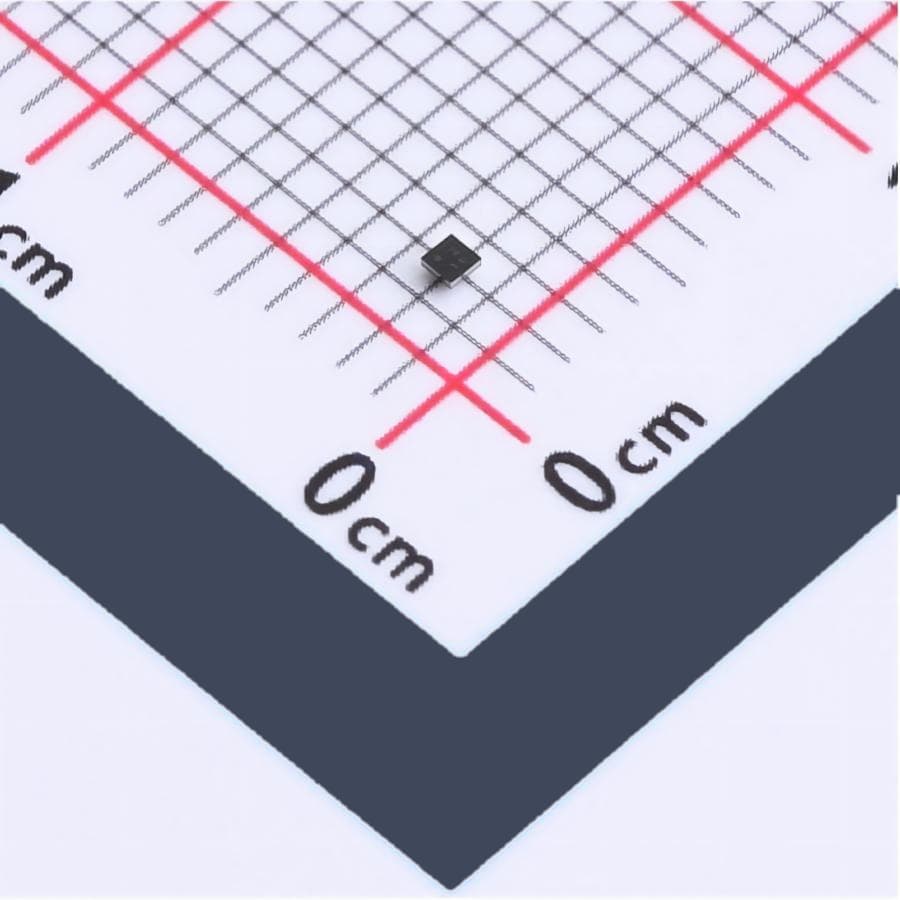

Diodes Incorporated AP22908CN4-7

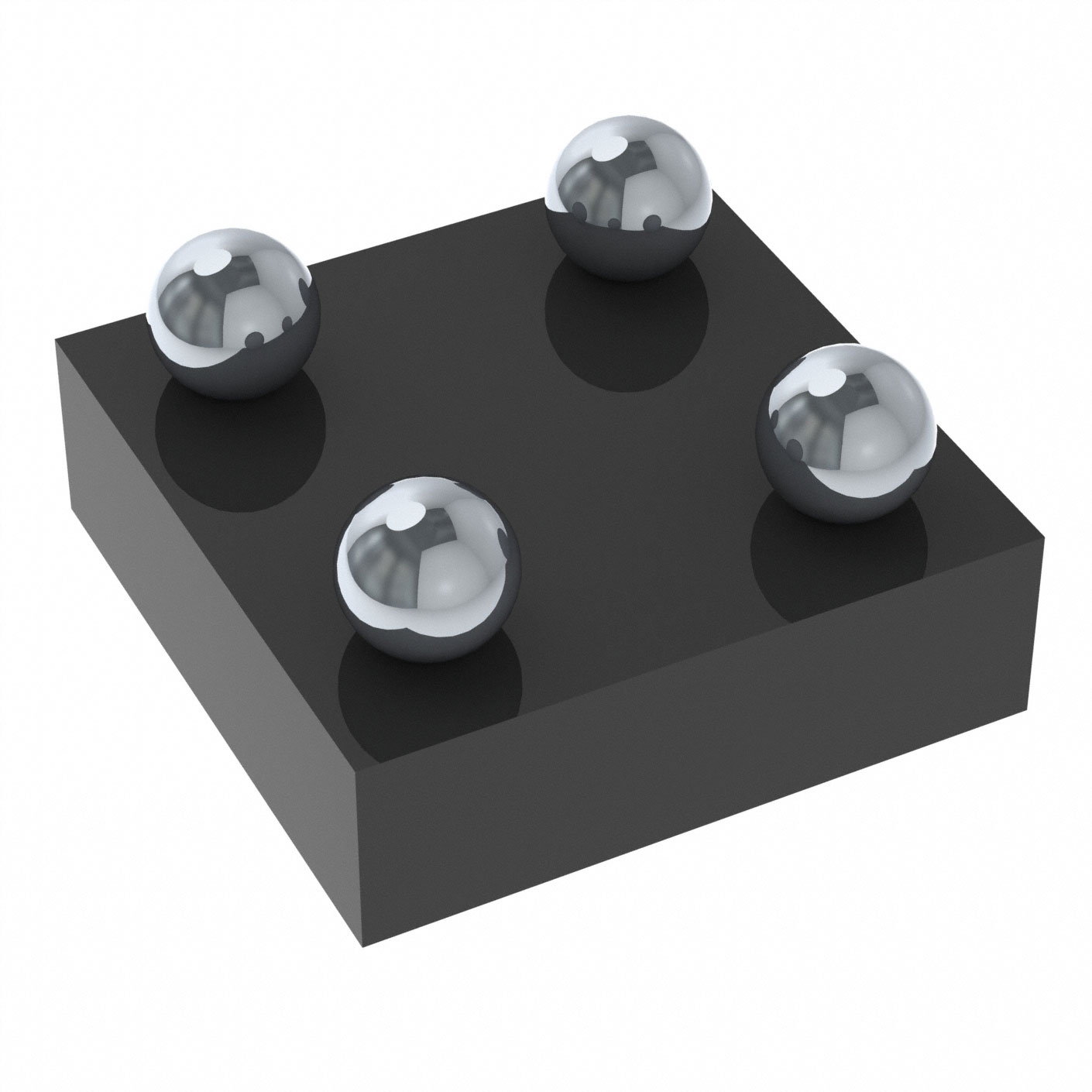

Image shown is a representation only
Manufacturer
Manufacturer No
AP22908CN4-7
Date Code
2319
Quantity
3,980
Availability
In Stock
Package
4-XFBGA, WLBGA
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
LOADSWITCHX1-WLB0909-4T&R3K
Detailed Description
Power Switch/Driver 1:1 P-Channel 1.5A X1-WLB0909-4
Datasheet
Mfr
Diodes Incorporated
Features
Load Discharge, Slew Rate Controlled
Interface
On/Off
Packaging
Tape & Reel (TR); Cut Tape (CT)
Input Type
Non-Inverting
Output Type
P-Channel
Switch Type
General Purpose
Rds On (Typ)
112mOhm
Mounting Type
Surface Mount
Package / Case
4-XFBGA, WLBGA
Voltage - Load
1.08V ~ 3.6V
Number of Outputs
1
Base Product Number
AP22908
Output Configuration
High Side
Ratio - Input:Output
1:1
Operating Temperature
-40°C ~ 85°C (TA)
Current - Output (Max)
1.5A
Supplier Device Package
X1-WLB0909-4
Voltage - Supply (Vcc/Vdd)
Not Required
| Attribute | Value |
|---|---|
| Mfr | Diodes Incorporated |
| Features | Load Discharge, Slew Rate Controlled |
| Interface | On/Off |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Input Type | Non-Inverting |
| Output Type | P-Channel |
| Switch Type | General Purpose |
| Rds On (Typ) | 112mOhm |
| Mounting Type | Surface Mount |
| Package / Case | 4-XFBGA, WLBGA |
| Voltage - Load | 1.08V ~ 3.6V |
| Number of Outputs | 1 |
| Base Product Number | AP22908 |
| Output Configuration | High Side |
| Ratio - Input:Output | 1:1 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Current - Output (Max) | 1.5A |
| Supplier Device Package | X1-WLB0909-4 |
| Voltage - Supply (Vcc/Vdd) | Not Required |
