Diodes Incorporated AP22615AWU-7

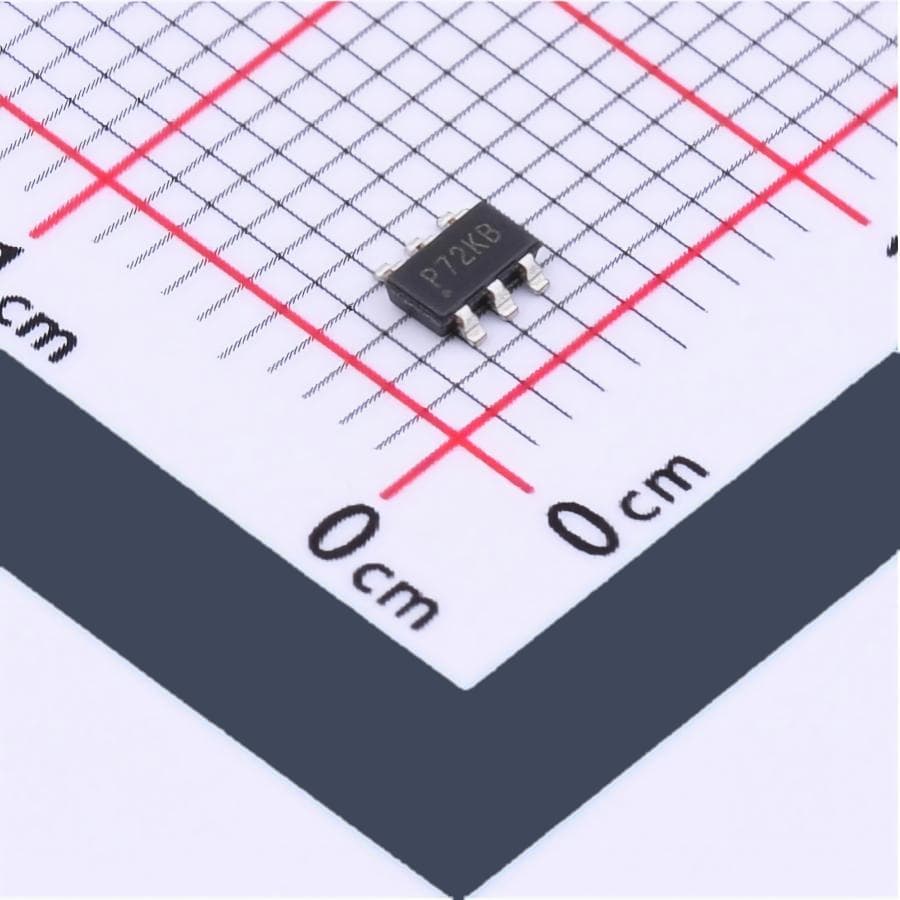

Image shown is a representation only
Manufacturer
Manufacturer No
AP22615AWU-7
Quantity
1310
Availability
In Stock
Package
SOT-23-6 Thin, TSOT-23-6
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC PWR SWTCH N/P-CHAN 1:1 TSOT26
Detailed Description
Power Switch/Driver 1:1 N/P-Channel 3A TSOT-26
DataSheet
Mfr
Diodes Incorporated
Features
Load Discharge, Status Flag
Interface
On/Off
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Input Type
Non-Inverting
Output Type
N/P-Channel
Part Status
Active
Switch Type
USB Switch
Rds On (Typ)
40mOhm
Mounting Type
Surface Mount
Package / Case
SOT-23-6 Thin, TSOT-23-6
Voltage - Load
3V ~ 5.5V
Fault Protection
Over Current, Over Temperature, Over Voltage, Short Circuit
Number of Outputs
1
Base Product Number
AP22615
Output Configuration
High Side
Ratio - Input:Output
1:1
Operating Temperature
-40°C ~ 85°C (TA)
Current - Output (Max)
3A
Supplier Device Package
TSOT-26
Voltage - Supply (Vcc/Vdd)
3V ~ 5.5V
| Attribute | Value |
|---|---|
| Mfr | Diodes Incorporated |
| Features | Load Discharge, Status Flag |
| Interface | On/Off |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Input Type | Non-Inverting |
| Output Type | N/P-Channel |
| Part Status | Active |
| Switch Type | USB Switch |
| Rds On (Typ) | 40mOhm |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Voltage - Load | 3V ~ 5.5V |
| Fault Protection | Over Current, Over Temperature, Over Voltage, Short Circuit |
| Number of Outputs | 1 |
| Base Product Number | AP22615 |
| Output Configuration | High Side |
| Ratio - Input:Output | 1:1 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Current - Output (Max) | 3A |
| Supplier Device Package | TSOT-26 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
