Diodes Incorporated AP2152ASG-13

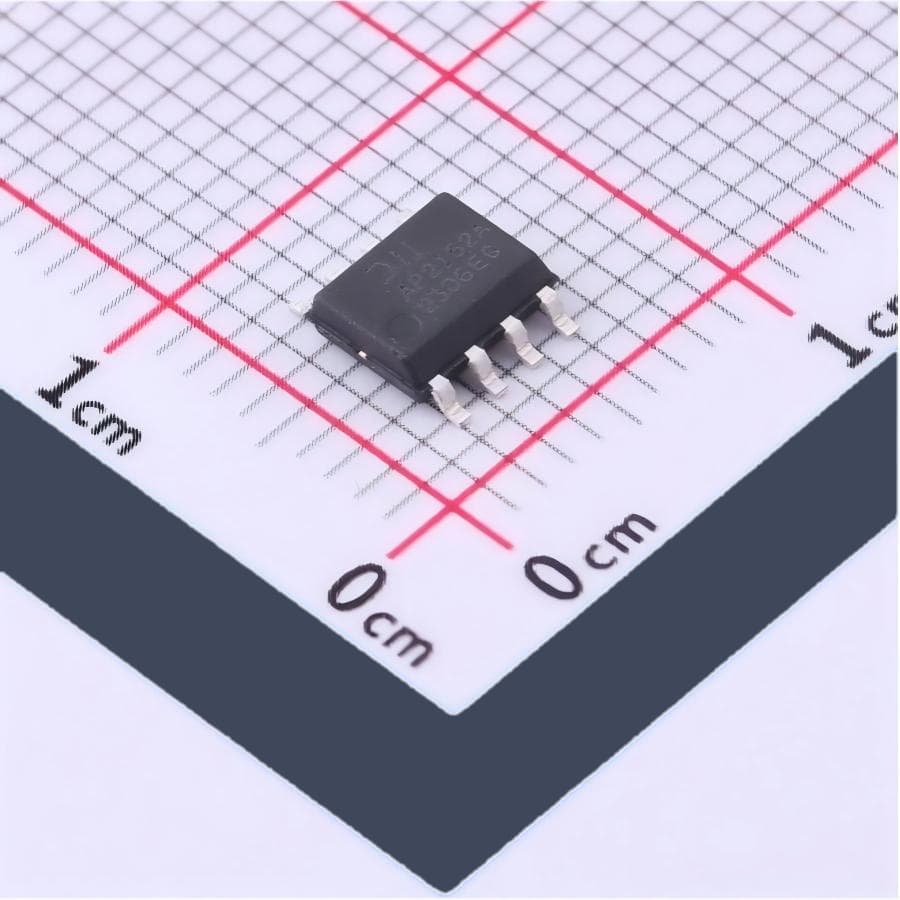

Image shown is a representation only
Manufacturer
Manufacturer No
AP2152ASG-13
Quantity
1658
Availability
In Stock
Package
8-SOIC (0.154", 3.90mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC PWR SWITCH P-CHANNEL 1:2 8SOP
Detailed Description
Power Switch/Driver 1:2 P-Channel 500mA 8-SOP
DataSheet
Mfr
Diodes Incorporated
Features
Load Discharge, Status Flag
Interface
On/Off
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Input Type
Non-Inverting
Output Type
P-Channel
Part Status
Active
Switch Type
USB Switch
Rds On (Typ)
90mOhm
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Voltage - Load
2.7V ~ 5.5V
Fault Protection
Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Number of Outputs
2
Base Product Number
AP2152
Output Configuration
High Side
Ratio - Input:Output
1:2
Operating Temperature
-40°C ~ 85°C (TA)
Current - Output (Max)
500mA
Supplier Device Package
8-SOP
Voltage - Supply (Vcc/Vdd)
Not Required
| Attribute | Value |
|---|---|
| Mfr | Diodes Incorporated |
| Features | Load Discharge, Status Flag |
| Interface | On/Off |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Input Type | Non-Inverting |
| Output Type | P-Channel |
| Part Status | Active |
| Switch Type | USB Switch |
| Rds On (Typ) | 90mOhm |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Voltage - Load | 2.7V ~ 5.5V |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO |
| Number of Outputs | 2 |
| Base Product Number | AP2152 |
| Output Configuration | High Side |
| Ratio - Input:Output | 1:2 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Current - Output (Max) | 500mA |
| Supplier Device Package | 8-SOP |
| Voltage - Supply (Vcc/Vdd) | Not Required |
