Step1: Product
Diodes Incorporated AH1815-P-B

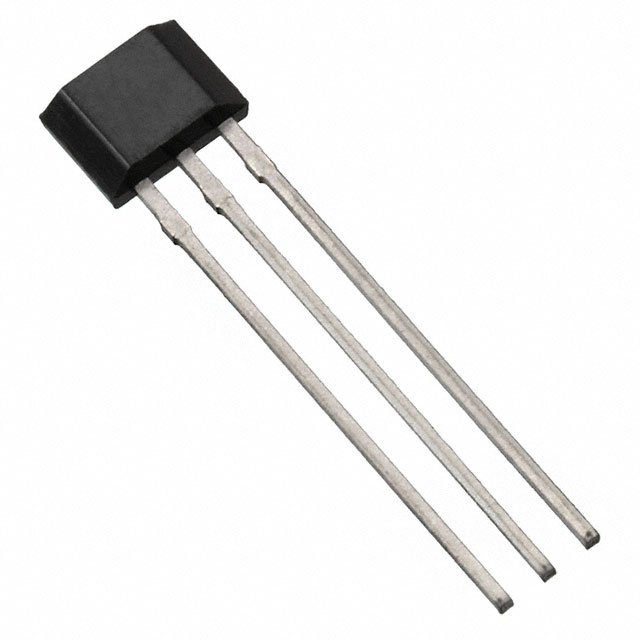

Image shown is a representation only
Manufacturer
Manufacturer No
AH1815-P-B
Date Code
2347
Quantity
17,230
Availability
In Stock
Package
3-SIP
Packaging
Bulk
Description
MAGNETIC SWITCH OMNIPOLAR 3SIP
Detailed Description
Digital Switch Omnipolar Switch Open Drain Hall Effect 3-SIP
Datasheet
Mfr
Diodes Incorporated
Features
Sleep Mode
Function
Omnipolar Switch
Packaging
Bulk
Technology
Hall Effect
Output Type
Open Drain
Polarization
North Pole, South Pole
Mounting Type
Through Hole
Sensing Range
±54mT Trip, ±49mT Release
Package / Case
3-SIP
Test Condition
-40°C ~ 125°C
Voltage - Supply
2.5V ~ 5.5V
Base Product Number
AH1815
Operating Temperature
-40°C ~ 125°C (TA)
Current - Output (Max)
2.5mA
Current - Supply (Max)
12mA
Supplier Device Package
3-SIP
| Attribute | Value |
|---|---|
| Mfr | Diodes Incorporated |
| Features | Sleep Mode |
| Function | Omnipolar Switch |
| Packaging | Bulk |
| Technology | Hall Effect |
| Output Type | Open Drain |
| Polarization | North Pole, South Pole |
| Mounting Type | Through Hole |
| Sensing Range | ±54mT Trip, ±49mT Release |
| Package / Case | 3-SIP |
| Test Condition | -40°C ~ 125°C |
| Voltage - Supply | 2.5V ~ 5.5V |
| Base Product Number | AH1815 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Current - Output (Max) | 2.5mA |
| Current - Supply (Max) | 12mA |
| Supplier Device Package | 3-SIP |
