Step1: Product

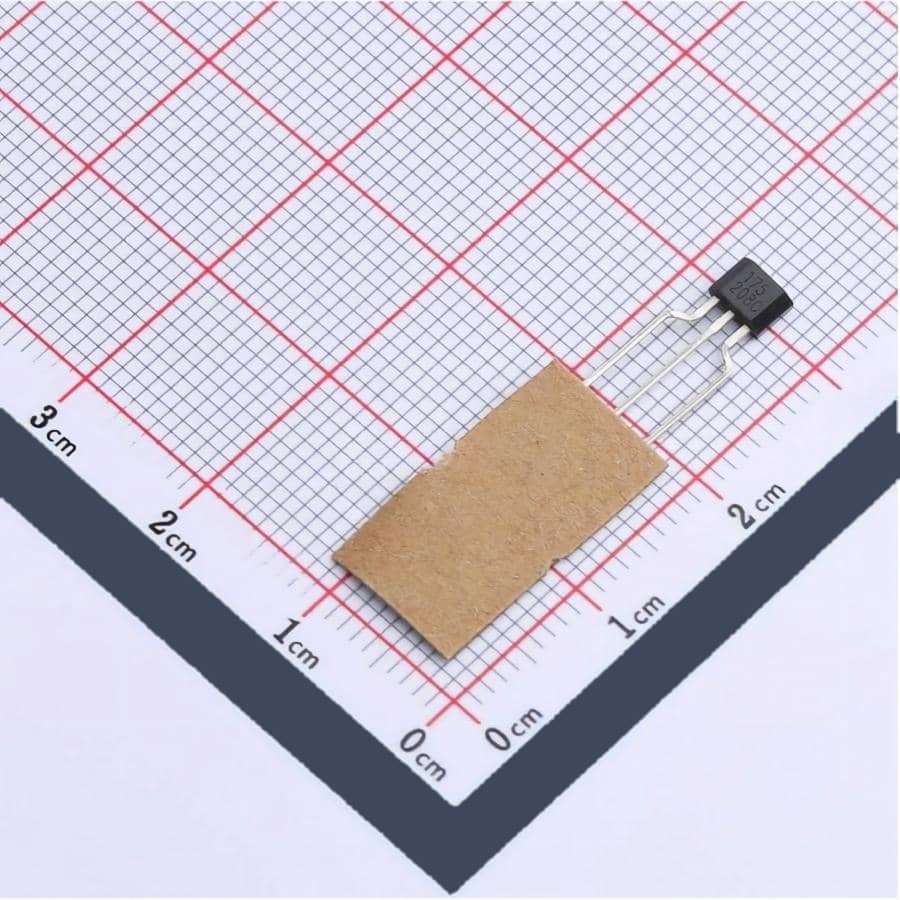

Diodes Incorporated AH175-PG-A-B

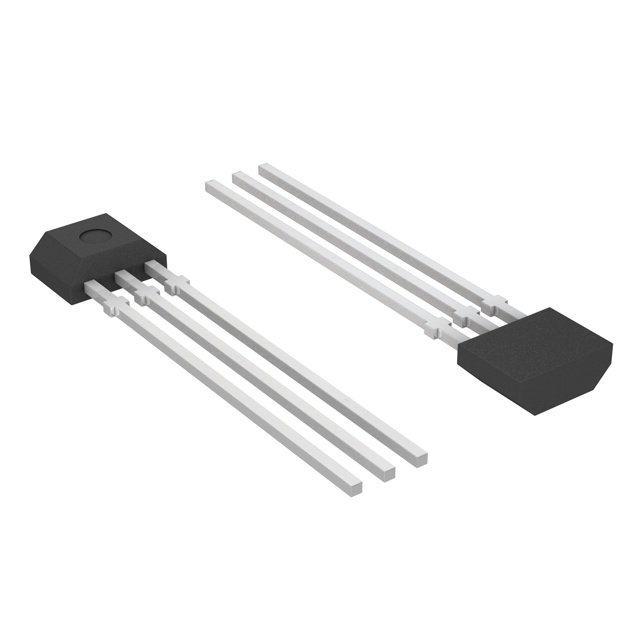

Image shown is a representation only
Manufacturer
Manufacturer No
AH175-PG-A-B
Quantity
37
Availability
In Stock
Package
3-SIP, Formed Leads
Packaging
Bulk
Description
MAGNETIC SWITCH LATCH 3SIP
Detailed Description
Digital Switch Latch Open Collector Hall Effect 3-SIP
DataSheet
Mfr
Diodes Incorporated
Features
Temperature Compensated
Function
Latch
Packaging
Bulk
Technology
Hall Effect
Output Type
Open Collector
Part Status
Active
Polarization
South Pole
Mounting Type
Through Hole
Sensing Range
8mT Trip, -8mT Release
Package / Case
3-SIP, Formed Leads
Test Condition
25°C
Voltage - Supply
3.5V ~ 20V
Base Product Number
AH175
Operating Temperature
-40°C ~ 150°C (TA)
Current - Output (Max)
25mA
Current - Supply (Max)
6mA
Supplier Device Package
3-SIP
| Attribute | Value |
|---|---|
| Mfr | Diodes Incorporated |
| Features | Temperature Compensated |
| Function | Latch |
| Packaging | Bulk |
| Technology | Hall Effect |
| Output Type | Open Collector |
| Part Status | Active |
| Polarization | South Pole |
| Mounting Type | Through Hole |
| Sensing Range | 8mT Trip, -8mT Release |
| Package / Case | 3-SIP, Formed Leads |
| Test Condition | 25°C |
| Voltage - Supply | 3.5V ~ 20V |
| Base Product Number | AH175 |
| Operating Temperature | -40°C ~ 150°C (TA) |
| Current - Output (Max) | 25mA |
| Current - Supply (Max) | 6mA |
| Supplier Device Package | 3-SIP |
