Step1: Product

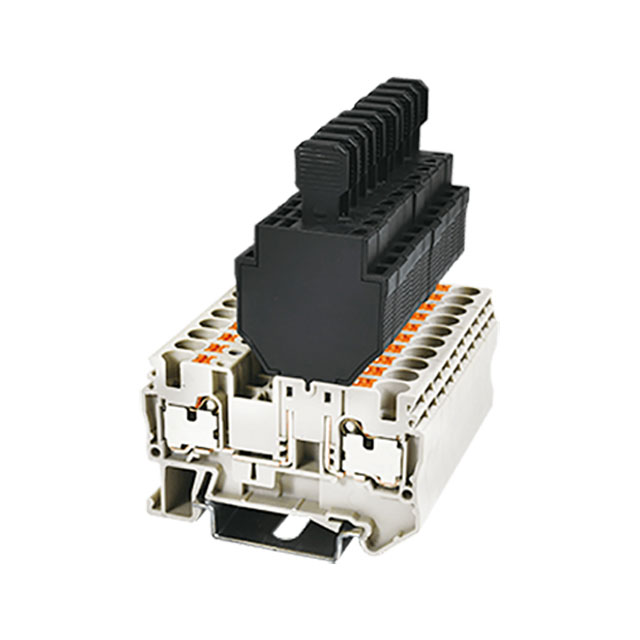

Dinkle Corporation, USA DP4-TFU(5X20)
Image shown is a representation only
Manufacturer
Manufacturer No
DP4-TFU(5X20)
Packaging
Box
Description
PUSH IN TERM BLK DISCONNECT 24~1
Detailed Description
Terminal Block Connector 2 Position Disconnect Gray 10-24 AWG
DataSheet
Type
Disconnect
Color
Gray
Series
DP
Fuse Type
5mm x 20mm
Packaging
Box
Part Status
Active
Current - UL
12 A
Manufacturer
Dinkle Corporation, USA
Voltage - UL
300V
Current - IEC
10 A
Voltage - IEC
400V
Disconnect Type
Fuse, Removable Plug
Number of Levels
1
Stripping Length
12mm
Terminal - Width
6.1mm
Termination Style
Push In
Base Product Number
DP4
Number of Positions
2
Material - Insulation
Polyamide (PA), Nylon
Wire Gauge or Range - AWG
10-24 AWG
Wire Gauge or Range - mm²
0.2-6mm²
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Disconnect |
| Color | Gray |
| Series | DP |
| Fuse Type | 5mm x 20mm |
| Packaging | Box |
| Part Status | Active |
| Current - UL | 12 A |
| Manufacturer | Dinkle Corporation, USA |
| Voltage - UL | 300V |
| Current - IEC | 10 A |
| Voltage - IEC | 400V |
| Disconnect Type | Fuse, Removable Plug |
| Number of Levels | 1 |
| Stripping Length | 12mm |
| Terminal - Width | 6.1mm |
| Termination Style | Push In |
| Base Product Number | DP4 |
| Number of Positions | 2 |
| Material - Insulation | Polyamide (PA), Nylon |
| Wire Gauge or Range - AWG | 10-24 AWG |
| Wire Gauge or Range - mm² | 0.2-6mm² |
| Material Flammability Rating | UL94 V-0 |
