Step1: Product
DigiKey 399-10-116-10-009000

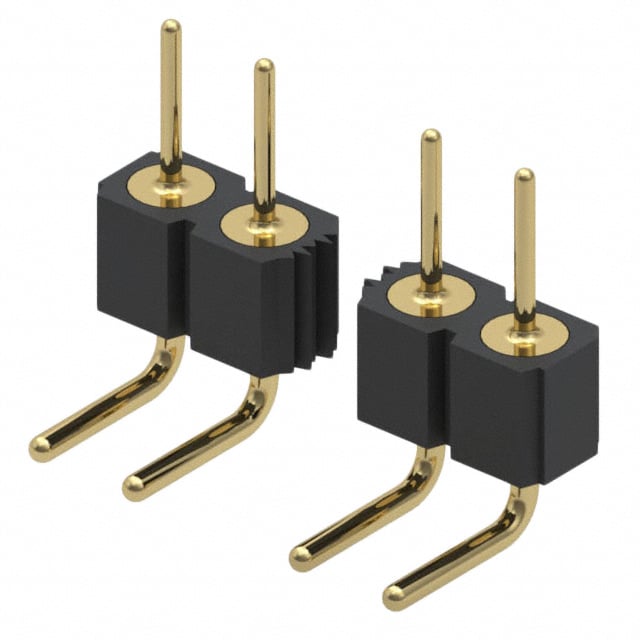

Image shown is a representation only
Manufacturer
Manufacturer No
399-10-116-10-009000
Packaging
Bulk
Description
CONN HEADER R/A 16POS 2.54MM
Detailed Description
Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm)
DataSheet
Mfr
DigiKey
Style
Board to Board
Series
399
Packaging
Bulk
Shrouding
Unshrouded
Part Status
Discontinued at DigiKey
Termination
Solder
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Contact Material
Brass Alloy
Insulation Color
Black
Insulation Height
0.100" (2.54mm)
Base Product Number
399-10
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT)
Number of Positions
16
Contact Finish - Post
Gold
Contact Length - Post
0.126" (3.20mm)
Contact Finish - Mating
Gold
Contact Length - Mating
0.157" (4.00mm)
Number of Positions Loaded
All
Contact Finish Thickness - Post
10.0µin (0.25µm)
Contact Finish Thickness - Mating
10.0µin (0.25µm)
| Attribute | Value |
|---|---|
| Mfr | DigiKey |
| Style | Board to Board |
| Series | 399 |
| Packaging | Bulk |
| Shrouding | Unshrouded |
| Part Status | Discontinued at DigiKey |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Material | Brass Alloy |
| Insulation Color | Black |
| Insulation Height | 0.100" (2.54mm) |
| Base Product Number | 399-10 |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Number of Positions | 16 |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.126" (3.20mm) |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.157" (4.00mm) |
| Number of Positions Loaded | All |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
