Step1: Product
DigiKey 310-43-132-41-105000

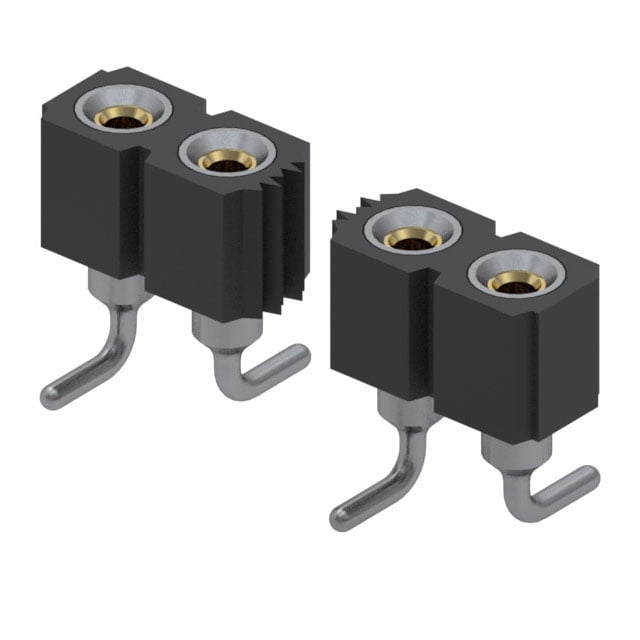

Image shown is a representation only
Manufacturer
Manufacturer No
310-43-132-41-105000
Packaging
Bulk
Description
CONN RCPT 23POS 0.1 GOLD SMD
Detailed Description
23 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Gold
DataSheet
Mfr
DigiKey
Style
Board to Board
Series
310
Packaging
Bulk
Part Status
Discontinued at DigiKey
Termination
Solder
Contact Type
Female Socket
Contact Shape
Circular
Mounting Type
Surface Mount
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
100V, 150VDC
Contact Material
Beryllium Copper
Insulation Color
Black
Insulation Height
0.220" (5.60mm)
Base Product Number
310-43
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Number of Positions
23
Contact Finish - Post
Tin
Current Rating (Amps)
3A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
200.0µin (5.08µm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | DigiKey |
| Style | Board to Board |
| Series | 310 |
| Packaging | Bulk |
| Part Status | Discontinued at DigiKey |
| Termination | Solder |
| Contact Type | Female Socket |
| Contact Shape | Circular |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 100V, 150VDC |
| Contact Material | Beryllium Copper |
| Insulation Color | Black |
| Insulation Height | 0.220" (5.60mm) |
| Base Product Number | 310-43 |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Number of Positions | 23 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 3A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
