Step1: Product

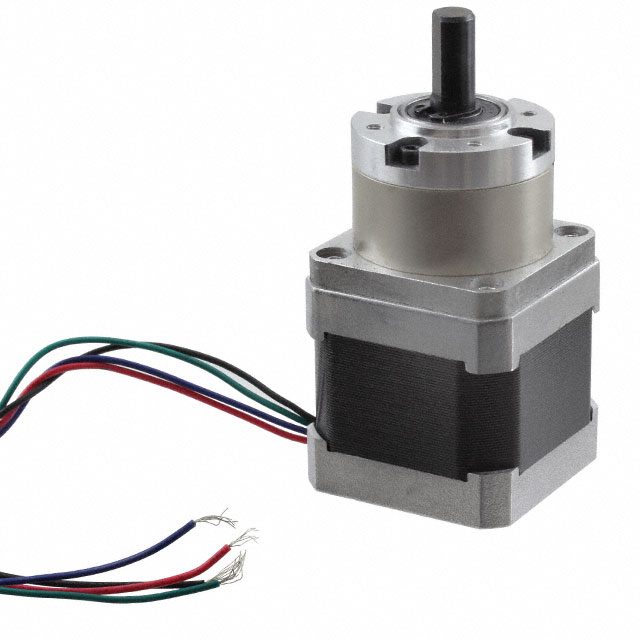

DFRobot FIT0349
Image shown is a representation only
Manufacturer
Manufacturer No
FIT0349
Packaging
Bulk
Description
BIPOLAR STEPPER MOTOR WITH PLANE
Detailed Description
Bipolar Stepper Motor Hybrid Gear Motor Frame Size 17 Step 2.7VDC
DataSheet
Mfr
DFRobot
Type
Hybrid Gear Motor
Accuracy
±5%
Features
Flatted Shaft
Coil Type
Bipolar
Packaging
Bulk
Step Angle
1.8°
Part Status
Active
Coil Resistance
1.5 Ohms
NEMA Frame Size
17
Voltage - Rated
2.7VDC
Diameter - Shaft
0.315" (8.00mm)
Size / Dimension
Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Termination Style
Wire Leads
Mounting Hole Spacing
1.100" (28.00mm)
Operating Temperature
-20°C ~ 50°C
Length - Shaft and Bearing
0.787" (20.00mm)
Torque - Holding (oz-in / mNm)
48.6 / 343.19
| Attribute | Value |
|---|---|
| Mfr | DFRobot |
| Type | Hybrid Gear Motor |
| Accuracy | ±5% |
| Features | Flatted Shaft |
| Coil Type | Bipolar |
| Packaging | Bulk |
| Step Angle | 1.8° |
| Part Status | Active |
| Coil Resistance | 1.5 Ohms |
| NEMA Frame Size | 17 |
| Voltage - Rated | 2.7VDC |
| Diameter - Shaft | 0.315" (8.00mm) |
| Size / Dimension | Square - 1.654" x 1.654" (42.00mm x 42.00mm) |
| Termination Style | Wire Leads |
| Mounting Hole Spacing | 1.100" (28.00mm) |
| Operating Temperature | -20°C ~ 50°C |
| Length - Shaft and Bearing | 0.787" (20.00mm) |
| Torque - Holding (oz-in / mNm) | 48.6 / 343.19 |
