Step1: Product

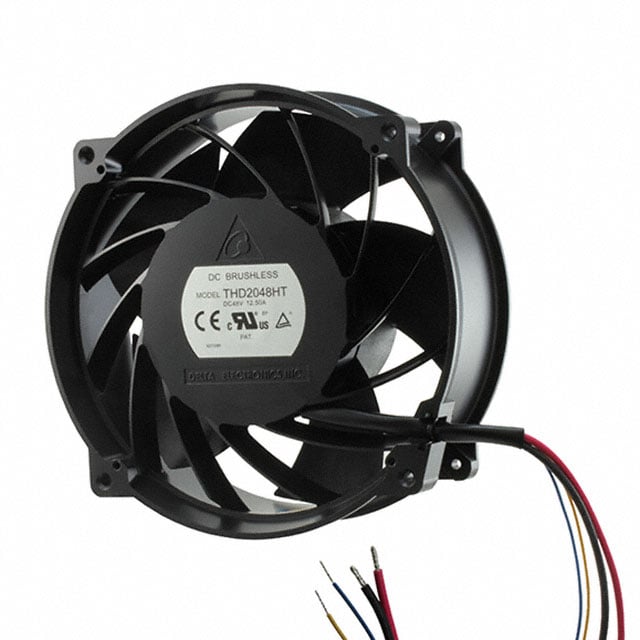

Delta Electronics THD2048HT
Image shown is a representation only
Manufacturer
Manufacturer No
THD2048HT
Packaging
Box
Description
FAN AXIAL 200X70MM 48VDC WIRE
Detailed Description
Fan Tubeaxial 48VDC Round - 200mm Dia Ball 1026.8 CFM (28.75m³/min) 4 Wire Leads
DataSheet
Mfr
Delta Electronics
RPM
7400 RPM
Noise
78.0dB(A)
Width
70.00mm
Series
THD - Bionic Blade
Weight
3.5 lbs (1.6 kg)
Air Flow
1026.8 CFM (28.75m³/min)
Fan Type
Tubeaxial
Features
Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Packaging
Box
Part Status
Active
Termination
4 Wire Leads
Bearing Type
Ball
Power (Watts)
384 W
Voltage Range
36 ~ 75VDC
Approval Agency
CE, cURus, TUV
Static Pressure
4.945 in H2O (1232.2 Pa)
Voltage - Rated
48VDC
Lifetime @ Temp.
70000 Hrs @ 40°C
Material - Blade
Plastic
Material - Frame
Aluminum
Size / Dimension
Round - 200mm Dia
Base Product Number
THD2048
Current Rating (Amps)
8.00A
Operating Temperature
14 ~ 158°F (-10 ~ 70°C)
| Attribute | Value |
|---|---|
| Mfr | Delta Electronics |
| RPM | 7400 RPM |
| Noise | 78.0dB(A) |
| Width | 70.00mm |
| Series | THD - Bionic Blade |
| Weight | 3.5 lbs (1.6 kg) |
| Air Flow | 1026.8 CFM (28.75m³/min) |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Packaging | Box |
| Part Status | Active |
| Termination | 4 Wire Leads |
| Bearing Type | Ball |
| Power (Watts) | 384 W |
| Voltage Range | 36 ~ 75VDC |
| Approval Agency | CE, cURus, TUV |
| Static Pressure | 4.945 in H2O (1232.2 Pa) |
| Voltage - Rated | 48VDC |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Size / Dimension | Round - 200mm Dia |
| Base Product Number | THD2048 |
| Current Rating (Amps) | 8.00A |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
