Step1: Product

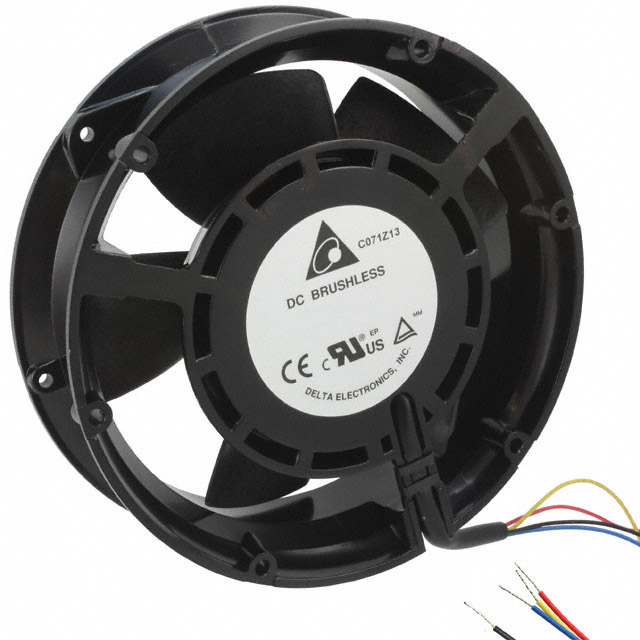

Delta Electronics TDA1748AG
Image shown is a representation only
Manufacturer
Manufacturer No
TDA1748AG
Packaging
Box
Description
FAN AXIAL 172X50.8MM 48VDC WIRE
Detailed Description
Fan Tubeaxial 48VDC Round - 172mm Dia Ball 413.0 CFM (11.56m³/min) 4 Wire Leads
DataSheet
Mfr
Delta Electronics
RPM
5400 RPM
Noise
71.0dB(A)
Width
50.80mm
Series
TDA
Weight
1.8 lb (800.0 g)
Air Flow
413.0 CFM (11.56m³/min)
Fan Type
Tubeaxial
Features
Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Packaging
Box
Part Status
Obsolete
Termination
4 Wire Leads
Bearing Type
Ball
Power (Watts)
88.8 W
Voltage Range
30 ~ 60VDC
Approval Agency
CE, CSA, UL, VDE
Static Pressure
2.820 in H2O (702.5 Pa)
Voltage - Rated
48VDC
Lifetime @ Temp.
80000 Hrs @ 40°C
Material - Blade
Plastic
Material - Frame
Aluminum
Size / Dimension
Round - 172mm Dia
Base Product Number
TDA1748
Current Rating (Amps)
1.85A
Operating Temperature
14 ~ 158°F (-10 ~ 70°C)
| Attribute | Value |
|---|---|
| Mfr | Delta Electronics |
| RPM | 5400 RPM |
| Noise | 71.0dB(A) |
| Width | 50.80mm |
| Series | TDA |
| Weight | 1.8 lb (800.0 g) |
| Air Flow | 413.0 CFM (11.56m³/min) |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Packaging | Box |
| Part Status | Obsolete |
| Termination | 4 Wire Leads |
| Bearing Type | Ball |
| Power (Watts) | 88.8 W |
| Voltage Range | 30 ~ 60VDC |
| Approval Agency | CE, CSA, UL, VDE |
| Static Pressure | 2.820 in H2O (702.5 Pa) |
| Voltage - Rated | 48VDC |
| Lifetime @ Temp. | 80000 Hrs @ 40°C |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Size / Dimension | Round - 172mm Dia |
| Base Product Number | TDA1748 |
| Current Rating (Amps) | 1.85A |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
