Step1: Product

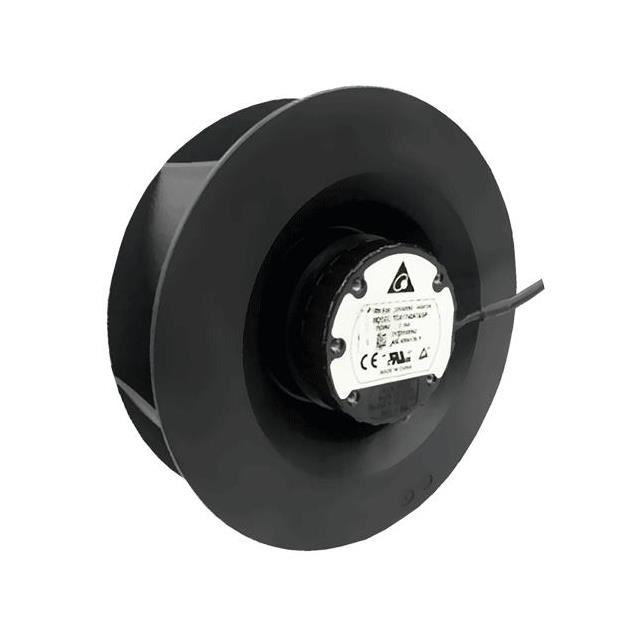

Delta Electronics TCA1748ATP8
Image shown is a representation only
Manufacturer
Manufacturer No
TCA1748ATP8
Packaging
Box
Description
FAN IMP MTRZD 176.5X69MM 48VDC
Detailed Description
Fan Motorized Impellers 48VDC Round - 176.5mm Dia Ball 382.0 CFM (10.70m³/min) 4 Wire Leads
DataSheet
Mfr
Delta Electronics
RPM
4000 RPM
Noise
70.8dB(A)
Width
69.00mm
Series
TCA
Air Flow
382.0 CFM (10.70m³/min)
Fan Type
Motorized Impellers
Features
Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Packaging
Box
Part Status
Active
Termination
4 Wire Leads
Bearing Type
Ball
Power (Watts)
57.6 W
Voltage Range
36 ~ 60VDC
Approval Agency
CE, cURus, TUV
Static Pressure
2.114 in H2O (526.6 Pa)
Voltage - Rated
48VDC
Lifetime @ Temp.
70000 Hrs @ 40°C
Material - Blade
Plastic
Material - Frame
Aluminum
Size / Dimension
Round - 176.5mm Dia
Current Rating (Amps)
1.20A
Operating Temperature
14 ~ 158°F (-10 ~ 70°C)
| Attribute | Value |
|---|---|
| Mfr | Delta Electronics |
| RPM | 4000 RPM |
| Noise | 70.8dB(A) |
| Width | 69.00mm |
| Series | TCA |
| Air Flow | 382.0 CFM (10.70m³/min) |
| Fan Type | Motorized Impellers |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Packaging | Box |
| Part Status | Active |
| Termination | 4 Wire Leads |
| Bearing Type | Ball |
| Power (Watts) | 57.6 W |
| Voltage Range | 36 ~ 60VDC |
| Approval Agency | CE, cURus, TUV |
| Static Pressure | 2.114 in H2O (526.6 Pa) |
| Voltage - Rated | 48VDC |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Size / Dimension | Round - 176.5mm Dia |
| Current Rating (Amps) | 1.20A |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
