Step1: Product
Delta Electronics FFB1224XHE-M

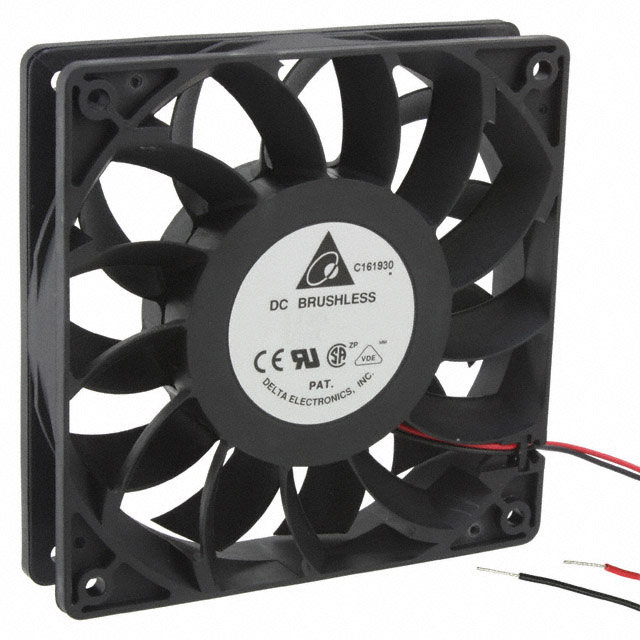

Image shown is a representation only
Manufacturer
Manufacturer No
FFB1224XHE-M
Packaging
Box
Description
FAN AXIAL 120X38MM 24VDC WIRE
Detailed Description
Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 264.6 CFM (7.41m³/min) 2 Wire Leads
DataSheet
Mfr
Delta Electronics
RPM
6300 RPM
Noise
73.5dB(A)
Width
38.00mm
Series
FFB
Weight
1.1 lbs (499.0 g)
Air Flow
264.6 CFM (7.41m³/min)
Fan Type
Tubeaxial
Features
Locked Rotor Protection
Packaging
Box
Part Status
Obsolete
Termination
2 Wire Leads
Bearing Type
Ball
Power (Watts)
78 W
Voltage Range
14 ~ 26.4VDC
Approval Agency
CE, CSA, UL, VDE
Static Pressure
1.705 in H2O (424.7 Pa)
Voltage - Rated
24VDC
Lifetime @ Temp.
80000 Hrs @ 40°C
Material - Blade
Plastic
Material - Frame
Aluminum
Size / Dimension
Square - 120mm L x 120mm H
Base Product Number
FFB1224
Current Rating (Amps)
3.25A
Operating Temperature
14 ~ 158°F (-10 ~ 70°C)
| Attribute | Value |
|---|---|
| Mfr | Delta Electronics |
| RPM | 6300 RPM |
| Noise | 73.5dB(A) |
| Width | 38.00mm |
| Series | FFB |
| Weight | 1.1 lbs (499.0 g) |
| Air Flow | 264.6 CFM (7.41m³/min) |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection |
| Packaging | Box |
| Part Status | Obsolete |
| Termination | 2 Wire Leads |
| Bearing Type | Ball |
| Power (Watts) | 78 W |
| Voltage Range | 14 ~ 26.4VDC |
| Approval Agency | CE, CSA, UL, VDE |
| Static Pressure | 1.705 in H2O (424.7 Pa) |
| Voltage - Rated | 24VDC |
| Lifetime @ Temp. | 80000 Hrs @ 40°C |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Size / Dimension | Square - 120mm L x 120mm H |
| Base Product Number | FFB1224 |
| Current Rating (Amps) | 3.25A |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
