Step1: Product

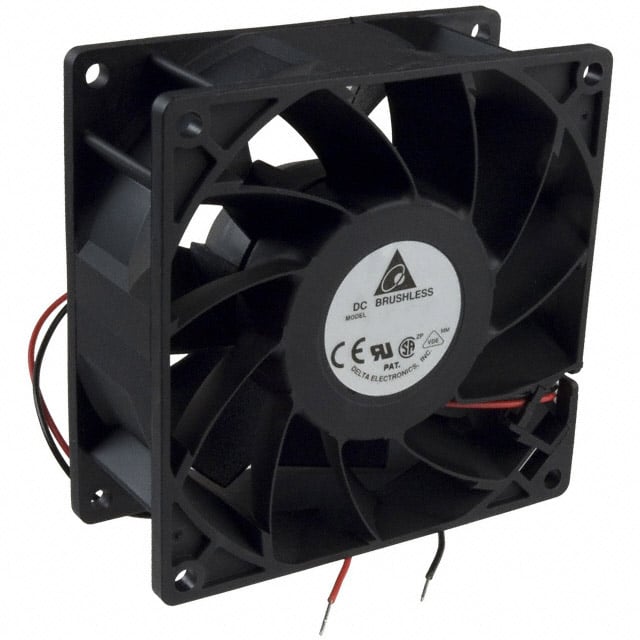

Delta Electronics FFB0948VH-F00
Image shown is a representation only
Manufacturer
Manufacturer No
FFB0948VH-F00
Packaging
Box
Description
FAN AXIAL 92X25.4MM 48VDC WIRE
Detailed Description
Fan Tubeaxial 48VDC Square - 92mm L x 92mm H Ball 82.0 CFM (2.30m³/min) 3 Wire Leads
DataSheet
Mfr
Delta Electronics
RPM
3700 RPM
Noise
48.2dB(A)
Width
25.40mm
Series
FFB
Weight
0.286 lb (129.73 g)
Air Flow
82.0 CFM (2.30m³/min)
Fan Type
Tubeaxial
Features
Locked Rotor Protection, Speed Sensor (Tach)
Packaging
Box
Part Status
Active
Termination
3 Wire Leads
Bearing Type
Ball
Power (Watts)
8.16 W
Voltage Range
28 ~ 53VDC
Approval Agency
CE, CSA, UL, VDE
Static Pressure
0.319 in H2O (79.5 Pa)
Voltage - Rated
48VDC
Lifetime @ Temp.
70000 Hrs @ 40°C
Material - Blade
Plastic
Material - Frame
Plastic
Size / Dimension
Square - 92mm L x 92mm H
Base Product Number
FFB0948
Current Rating (Amps)
0.170A
Operating Temperature
14 ~ 140°F (-10 ~ 60°C)
| Attribute | Value |
|---|---|
| Mfr | Delta Electronics |
| RPM | 3700 RPM |
| Noise | 48.2dB(A) |
| Width | 25.40mm |
| Series | FFB |
| Weight | 0.286 lb (129.73 g) |
| Air Flow | 82.0 CFM (2.30m³/min) |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Packaging | Box |
| Part Status | Active |
| Termination | 3 Wire Leads |
| Bearing Type | Ball |
| Power (Watts) | 8.16 W |
| Voltage Range | 28 ~ 53VDC |
| Approval Agency | CE, CSA, UL, VDE |
| Static Pressure | 0.319 in H2O (79.5 Pa) |
| Voltage - Rated | 48VDC |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Size / Dimension | Square - 92mm L x 92mm H |
| Base Product Number | FFB0948 |
| Current Rating (Amps) | 0.170A |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
