Step1: Product

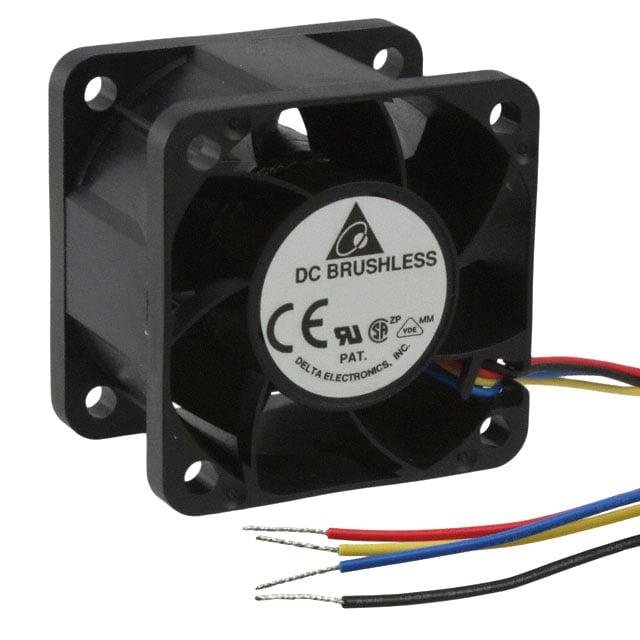

Delta Electronics FFB0412VHN-TP03
Image shown is a representation only
Manufacturer
Manufacturer No
FFB0412VHN-TP03
Packaging
Box
Description
FAN AXIAL 40X28MM 12VDC WIRE
Detailed Description
Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 15.8 CFM (0.442m³/min) 4 Wire Leads
Datasheet
Mfr
Delta Electronics
RPM
9500 RPM
Noise
45.0dB(A)
Width
28.00mm
Series
FFB
Weight
0.071 lb (32.21 g)
Air Flow
15.8 CFM (0.442m³/min)
Fan Type
Tubeaxial
Features
Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Packaging
Box
Termination
4 Wire Leads
Bearing Type
Ball
Power (Watts)
1.92 W
Voltage Range
7 ~ 13.2VDC
Approval Agency
CE, CSA, UL, VDE
Static Pressure
0.509 in H2O (126.8 Pa)
Voltage - Rated
12VDC
Lifetime @ Temp.
70000 Hrs @ 40°C
Material - Blade
Plastic
Material - Frame
Plastic
Size / Dimension
Square - 40mm L x 40mm H
Base Product Number
FFB0412
Current Rating (Amps)
0.160A
Operating Temperature
14 ~ 158°F (-10 ~ 70°C)
| Attribute | Value |
|---|---|
| Mfr | Delta Electronics |
| RPM | 9500 RPM |
| Noise | 45.0dB(A) |
| Width | 28.00mm |
| Series | FFB |
| Weight | 0.071 lb (32.21 g) |
| Air Flow | 15.8 CFM (0.442m³/min) |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Packaging | Box |
| Termination | 4 Wire Leads |
| Bearing Type | Ball |
| Power (Watts) | 1.92 W |
| Voltage Range | 7 ~ 13.2VDC |
| Approval Agency | CE, CSA, UL, VDE |
| Static Pressure | 0.509 in H2O (126.8 Pa) |
| Voltage - Rated | 12VDC |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Size / Dimension | Square - 40mm L x 40mm H |
| Base Product Number | FFB0412 |
| Current Rating (Amps) | 0.160A |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
