Step1: Product
Delta Electronics BFB0512LA-CF00

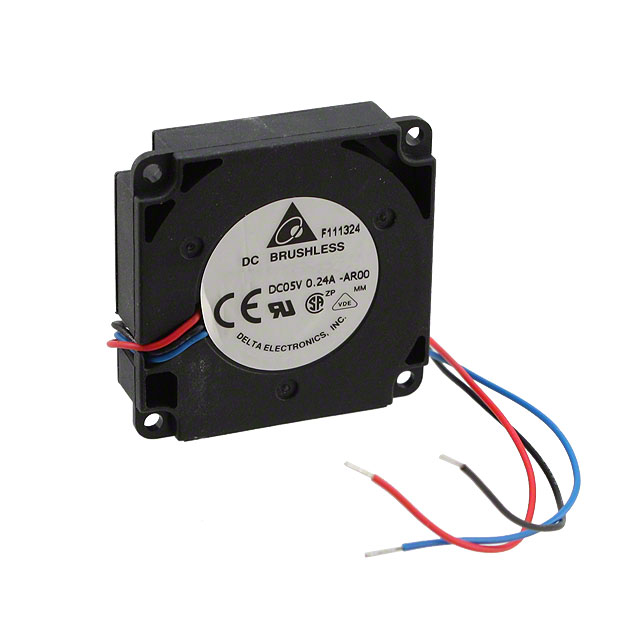

Image shown is a representation only
Manufacturer
Manufacturer No
BFB0512LA-CF00
Packaging
Box
Description
FAN BLOWER 50X10.3MM 12VDC WIRE
Detailed Description
Fan Blower 12VDC Square - 50mm L x 50mm H Ball 2.2 CFM (0.061m³/min) 3 Wire Leads
DataSheet
Mfr
Delta Electronics
RPM
3500 RPM
Noise
22.5dB(A)
Width
10.30mm
Series
BFB
Weight
0.05 lb (22.68 g)
Air Flow
2.2 CFM (0.061m³/min)
Fan Type
Blower
Features
Locked Rotor Protection, Speed Sensor (Tach)
Packaging
Box
Part Status
Active
Termination
3 Wire Leads
Bearing Type
Ball
Power (Watts)
600 mW
Voltage Range
7 ~ 13.2VDC
Approval Agency
CE, CSA, UL, VDE
Static Pressure
0.208 in H2O (51.8 Pa)
Voltage - Rated
12VDC
Lifetime @ Temp.
30000 Hrs @ 40°C
Material - Blade
Plastic
Material - Frame
Plastic
Size / Dimension
Square - 50mm L x 50mm H
Base Product Number
BFB0512
Current Rating (Amps)
0.050A
Operating Temperature
14 ~ 158°F (-10 ~ 70°C)
| Attribute | Value |
|---|---|
| Mfr | Delta Electronics |
| RPM | 3500 RPM |
| Noise | 22.5dB(A) |
| Width | 10.30mm |
| Series | BFB |
| Weight | 0.05 lb (22.68 g) |
| Air Flow | 2.2 CFM (0.061m³/min) |
| Fan Type | Blower |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Packaging | Box |
| Part Status | Active |
| Termination | 3 Wire Leads |
| Bearing Type | Ball |
| Power (Watts) | 600 mW |
| Voltage Range | 7 ~ 13.2VDC |
| Approval Agency | CE, CSA, UL, VDE |
| Static Pressure | 0.208 in H2O (51.8 Pa) |
| Voltage - Rated | 12VDC |
| Lifetime @ Temp. | 30000 Hrs @ 40°C |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Size / Dimension | Square - 50mm L x 50mm H |
| Base Product Number | BFB0512 |
| Current Rating (Amps) | 0.050A |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
