Step1: Product

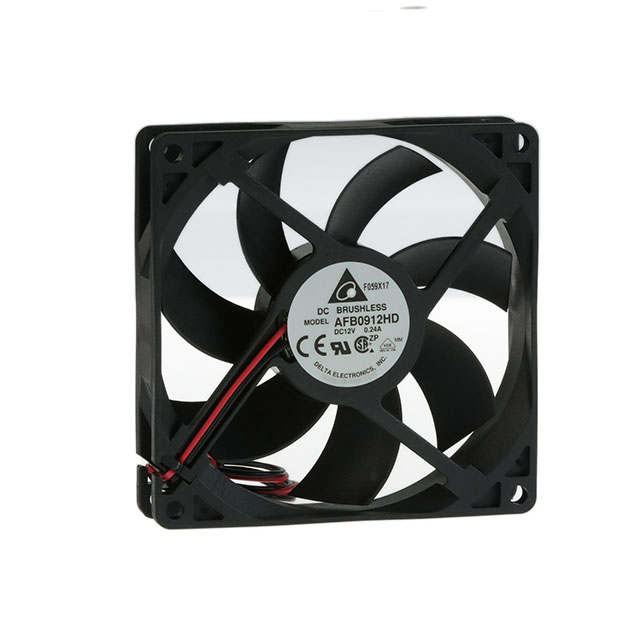

Delta Electronics AFB0912HD
Image shown is a representation only
Manufacturer
Manufacturer No
AFB0912HD
Packaging
Box
Description
FAN AXIAL 92X20MM 12VDC WIRE
Detailed Description
Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 54.6 CFM (1.53m³/min) 2 Wire Leads
DataSheet
Mfr
Delta Electronics
RPM
2700 RPM
Noise
35.0dB(A)
Width
20.00mm
Series
AFB
Weight
0.203 lb (92.08 g)
Air Flow
54.6 CFM (1.53m³/min)
Fan Type
Tubeaxial
Features
Locked Rotor Protection
Packaging
Box
Part Status
Obsolete
Termination
2 Wire Leads
Bearing Type
Ball
Power (Watts)
1.92 W
Voltage Range
7 ~ 13.8VDC
Approval Agency
CE, CSA, UL, VDE
Static Pressure
0.138 in H2O (34.3 Pa)
Voltage - Rated
12VDC
Material - Blade
Plastic
Material - Frame
Plastic
Size / Dimension
Square - 92mm L x 92mm H
Base Product Number
AFB0912
Current Rating (Amps)
0.160A
Operating Temperature
14 ~ 158°F (-10 ~ 70°C)
| Attribute | Value |
|---|---|
| Mfr | Delta Electronics |
| RPM | 2700 RPM |
| Noise | 35.0dB(A) |
| Width | 20.00mm |
| Series | AFB |
| Weight | 0.203 lb (92.08 g) |
| Air Flow | 54.6 CFM (1.53m³/min) |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection |
| Packaging | Box |
| Part Status | Obsolete |
| Termination | 2 Wire Leads |
| Bearing Type | Ball |
| Power (Watts) | 1.92 W |
| Voltage Range | 7 ~ 13.8VDC |
| Approval Agency | CE, CSA, UL, VDE |
| Static Pressure | 0.138 in H2O (34.3 Pa) |
| Voltage - Rated | 12VDC |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Size / Dimension | Square - 92mm L x 92mm H |
| Base Product Number | AFB0912 |
| Current Rating (Amps) | 0.160A |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
