Step1: Product
Delta Electronics AFB0612VHB-R00

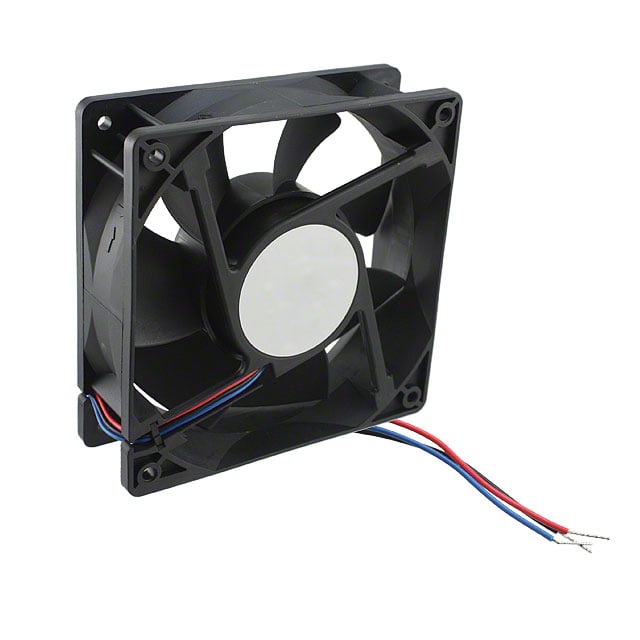

Image shown is a representation only
Manufacturer
Manufacturer No
AFB0612VHB-R00
Packaging
Box
Description
FAN AXIAL 60X15MM 12VDC WIRE
Detailed Description
Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 19.4 CFM (0.543m³/min) 3 Wire Leads
DataSheet
Mfr
Delta Electronics
RPM
5000 RPM
Noise
37.0dB(A)
Width
15.00mm
Series
AFB
Weight
0.098 lb (44.45 g)
Air Flow
19.4 CFM (0.543m³/min)
Fan Type
Tubeaxial
Features
Locked Rotor Sensor
Packaging
Box
Part Status
Obsolete
Termination
3 Wire Leads
Bearing Type
Ball
Power (Watts)
1.92 W
Voltage Range
7 ~ 13.8VDC
Approval Agency
CE, CSA, UL, VDE
Static Pressure
0.240 in H2O (59.8 Pa)
Voltage - Rated
12VDC
Lifetime @ Temp.
70000 Hrs @ 40°C
Material - Blade
Plastic
Material - Frame
Plastic
Size / Dimension
Square - 60mm L x 60mm H
Base Product Number
AFB0612
Current Rating (Amps)
0.160A
Operating Temperature
14 ~ 158°F (-10 ~ 70°C)
| Attribute | Value |
|---|---|
| Mfr | Delta Electronics |
| RPM | 5000 RPM |
| Noise | 37.0dB(A) |
| Width | 15.00mm |
| Series | AFB |
| Weight | 0.098 lb (44.45 g) |
| Air Flow | 19.4 CFM (0.543m³/min) |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Sensor |
| Packaging | Box |
| Part Status | Obsolete |
| Termination | 3 Wire Leads |
| Bearing Type | Ball |
| Power (Watts) | 1.92 W |
| Voltage Range | 7 ~ 13.8VDC |
| Approval Agency | CE, CSA, UL, VDE |
| Static Pressure | 0.240 in H2O (59.8 Pa) |
| Voltage - Rated | 12VDC |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Size / Dimension | Square - 60mm L x 60mm H |
| Base Product Number | AFB0612 |
| Current Rating (Amps) | 0.160A |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
