Step1: Product

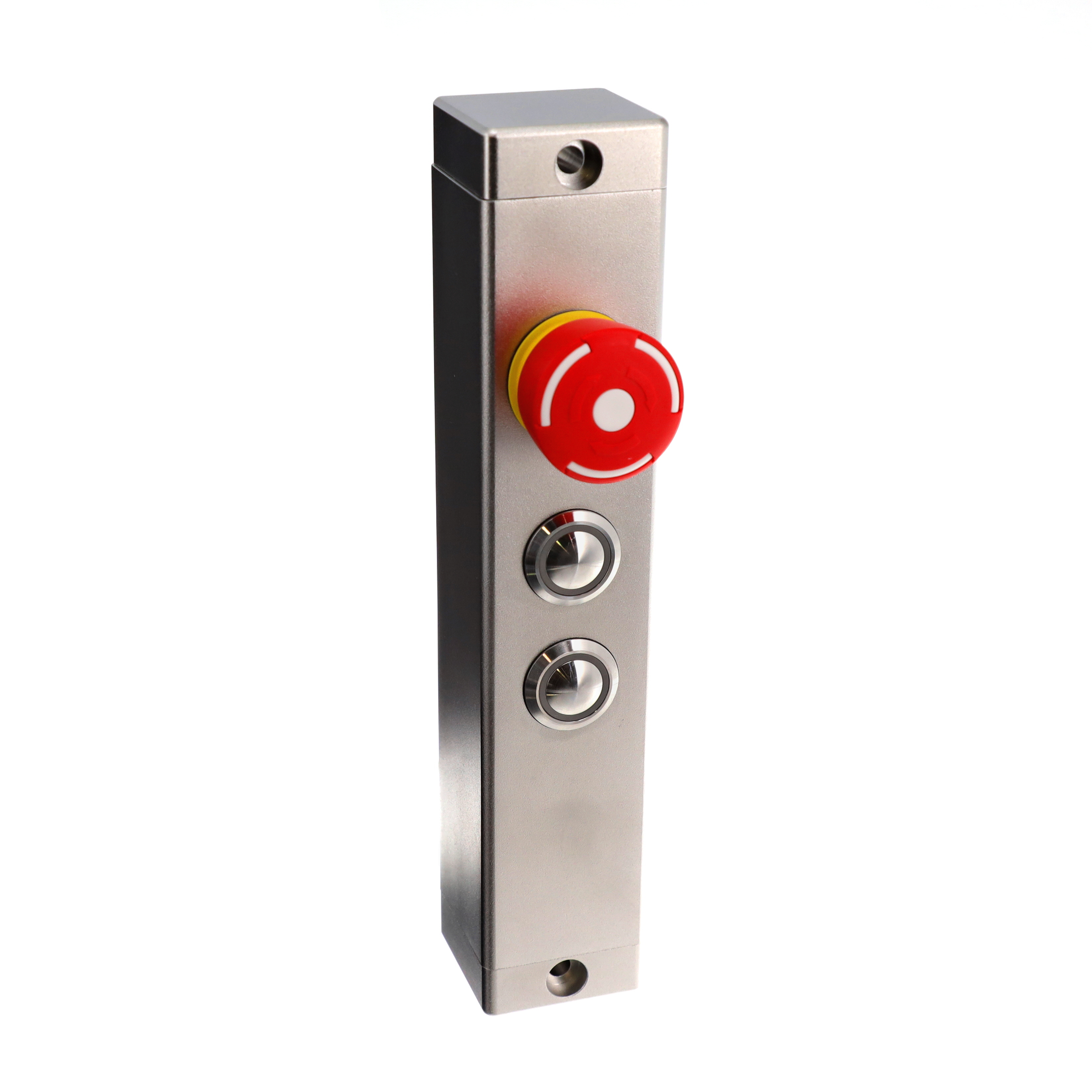

Davies Molding, LLC TG-05S.F190.36
Image shown is a representation only
Manufacturer
Manufacturer No
TG-05S.F190.36
Packaging
Tray
Description
SW E-STOP TWIST RESET 100MA 42V
Detailed Description
Emergency Stop Switch DPST-NC + SPDT + SPST-NO Chassis Mount Control Box Enclosure, With Pushbutton Switch
DataSheet
Series
TG
Circuit
DPST-NC + SPDT + SPST-NO
Features
Control Box Enclosure, With Pushbutton Switch
Packaging
Tray
Part Status
Active
Manufacturer
Davies Molding, LLC
Mounting Type
Chassis Mount
Reset Operation
Twist
Switch Function
On-Off, On-Mom, Off-Mom
Termination Style
Connector
Ingress Protection
IP65 - Dust Tight, Water Resistant
Base Product Number
TG-05S
Voltage Rating - AC
42 V
Voltage Rating - DC
42 V
Current Rating (Amps)
100mA (AC/DC)
Illumination Voltage (Nominal)
24 VDC
| Attribute | Value |
|---|---|
| Series | TG |
| Circuit | DPST-NC + SPDT + SPST-NO |
| Features | Control Box Enclosure, With Pushbutton Switch |
| Packaging | Tray |
| Part Status | Active |
| Manufacturer | Davies Molding, LLC |
| Mounting Type | Chassis Mount |
| Reset Operation | Twist |
| Switch Function | On-Off, On-Mom, Off-Mom |
| Termination Style | Connector |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Base Product Number | TG-05S |
| Voltage Rating - AC | 42 V |
| Voltage Rating - DC | 42 V |
| Current Rating (Amps) | 100mA (AC/DC) |
| Illumination Voltage (Nominal) | 24 VDC |
