Step1: Product
Curtis Instruments Inc. 703DR00101248D2060A

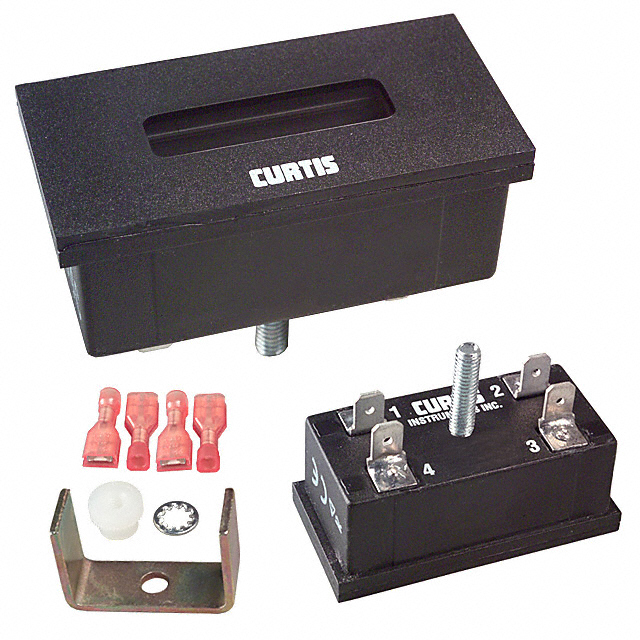

Image shown is a representation only
Manufacturer
Manufacturer No
703DR00101248D2060A
Description
COUNTER LCD 6 CHAR 20-60V PNL MT
Detailed Description
Totalizer 20 ~ 60VAC, 12 ~ 48VDC Panel Mount
DataSheet
Type
Totalizer
Reset
External
Series
703
Count Rate
500Hz
Input Type
No Voltage
Part Status
Obsolete
Display Type
LCD - Black Characters
Manufacturer
Curtis Instruments Inc.
Mounting Type
Panel Mount
Operating Mode
Up
Voltage - Supply
20 ~ 60VAC, 12 ~ 48VDC
Termination Style
Quick Connect - 0.187" (4.7mm)
Ingress Protection
IP66 - Dust Tight, Water Resistant
Operating Temperature
-40°C ~ 85°C
Panel Cutout Dimensions
Rectangular - 45.00mm x 22.20mm
Display Characters - Height
0.196" (5.00mm)
Number of Characters Per Row
6
| Attribute | Value |
|---|---|
| Type | Totalizer |
| Reset | External |
| Series | 703 |
| Count Rate | 500Hz |
| Input Type | No Voltage |
| Part Status | Obsolete |
| Display Type | LCD - Black Characters |
| Manufacturer | Curtis Instruments Inc. |
| Mounting Type | Panel Mount |
| Operating Mode | Up |
| Voltage - Supply | 20 ~ 60VAC, 12 ~ 48VDC |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Ingress Protection | IP66 - Dust Tight, Water Resistant |
| Operating Temperature | -40°C ~ 85°C |
| Panel Cutout Dimensions | Rectangular - 45.00mm x 22.20mm |
| Display Characters - Height | 0.196" (5.00mm) |
| Number of Characters Per Row | 6 |
