Step1: Product
CTS Resistor Products 742C163103JP

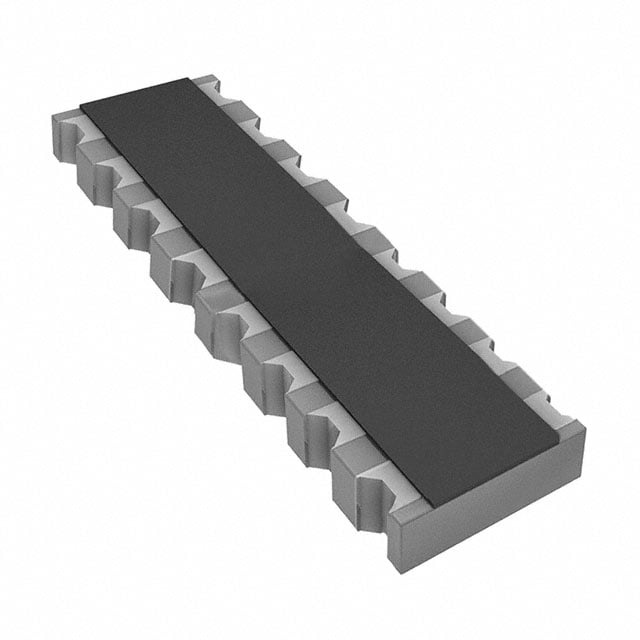

Image shown is a representation only
Manufacturer
Manufacturer No
742C163103JP
Quantity
1410
Availability
In Stock
Package
2506, Concave, Long Side Terminals
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
RES ARRAY 8 RES 10K OHM 2506
Detailed Description
10k Ohm ±5% 63mW Power Per Element Isolated 8 Resistor Network/Array ±200ppm/°C 2506, Concave, Long Side Terminals
DataSheet
Series
742
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Tolerance
±5%
Part Status
Active
Applications
DDR SDRAM, DRAM, MDDR
Circuit Type
Isolated
Manufacturer
CTS Resistor Products
Mounting Type
Surface Mount
Number of Pins
16
Package / Case
2506, Concave, Long Side Terminals
Size / Dimension
0.252" L x 0.063" W (6.40mm x 1.60mm)
Power Per Element
63mW
Resistance (Ohms)
10k
Base Product Number
742C163
Number of Resistors
8
Height - Seated (Max)
0.028" (0.70mm)
Operating Temperature
-55°C ~ 125°C
Temperature Coefficient
±200ppm/°C
| Attribute | Value |
|---|---|
| Series | 742 |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Tolerance | ±5% |
| Part Status | Active |
| Applications | DDR SDRAM, DRAM, MDDR |
| Circuit Type | Isolated |
| Manufacturer | CTS Resistor Products |
| Mounting Type | Surface Mount |
| Number of Pins | 16 |
| Package / Case | 2506, Concave, Long Side Terminals |
| Size / Dimension | 0.252" L x 0.063" W (6.40mm x 1.60mm) |
| Power Per Element | 63mW |
| Resistance (Ohms) | 10k |
| Base Product Number | 742C163 |
| Number of Resistors | 8 |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Operating Temperature | -55°C ~ 125°C |
| Temperature Coefficient | ±200ppm/°C |
