Step1: Product
Coto Technology UM2325

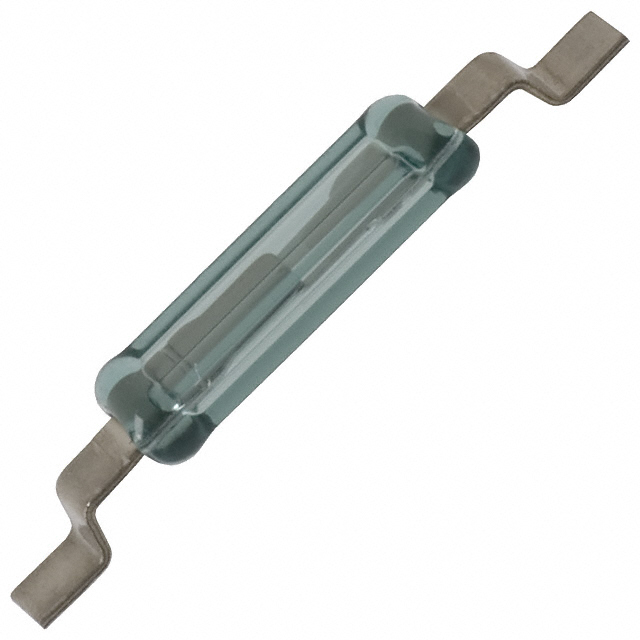

Image shown is a representation only
Manufacturer
Manufacturer No
UM2325
Packaging
Tape & Reel (TR)
Description
SWITCH REED SPST-NO 250MA 175V
Detailed Description
Glass Body Reed Switch SPST-NO 15 ~ 20AT Operate Range 5VA 250mA (AC/DC) 175 V Surface Mount
DataSheet
Type
Glass Body Reed
Series
UM2
Circuit
SPST-NO
Packaging
Tape & Reel (TR)
Capacitance
0.3 pF
Part Status
Obsolete
Size - Body
0.232" L x 0.076" W x 0.060" H (5.89mm x 1.93mm x 1.53mm)
Manufacturer
Coto Technology
Operate Time
0.4 ms
Release Time
0.1 ms
Mounting Type
Surface Mount
Operate Range
15 ~ 20AT
Power - Rated
5VA
Current - Carry
500mA (AC/DC)
Length - Overall
0.400" (10.16mm)
Termination Style
Gull Wing
Height Above Board
0.064" (1.64mm)
Current - Switching
250mA (AC/DC)
Operating Temperature
-40°C ~ 125°C
Voltage - Switching AC
175 V
Voltage - Switching DC
175 V
| Attribute | Value |
|---|---|
| Type | Glass Body Reed |
| Series | UM2 |
| Circuit | SPST-NO |
| Packaging | Tape & Reel (TR) |
| Capacitance | 0.3 pF |
| Part Status | Obsolete |
| Size - Body | 0.232" L x 0.076" W x 0.060" H (5.89mm x 1.93mm x 1.53mm) |
| Manufacturer | Coto Technology |
| Operate Time | 0.4 ms |
| Release Time | 0.1 ms |
| Mounting Type | Surface Mount |
| Operate Range | 15 ~ 20AT |
| Power - Rated | 5VA |
| Current - Carry | 500mA (AC/DC) |
| Length - Overall | 0.400" (10.16mm) |
| Termination Style | Gull Wing |
| Height Above Board | 0.064" (1.64mm) |
| Current - Switching | 250mA (AC/DC) |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Switching AC | 175 V |
| Voltage - Switching DC | 175 V |
