Step1: Product

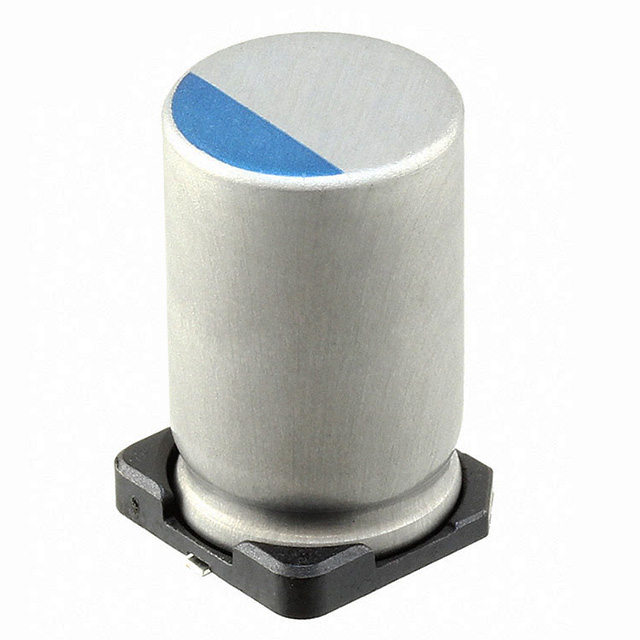

Cornell Dubilier Knowles 687UVR016MGU
Image shown is a representation only
Manufacturer
Manufacturer No
687UVR016MGU
Package
Radial, Can - SMD
Packaging
Tape & Reel (TR)
Description
CAP ALUM POLY 680UF 20% 16V SMD
Detailed Description
680 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 292.6mOhm 2000 Hrs @ 105°C
DataSheet
Type
Polymer
Series
UVR
Packaging
Tape & Reel (TR)
Tolerance
±20%
Capacitance
680 µF
Part Status
Active
Applications
Decoupling
Manufacturer
Cornell Dubilier Knowles
Mounting Type
Surface Mount
Package / Case
Radial, Can - SMD
Voltage - Rated
16 V
Lifetime @ Temp.
2000 Hrs @ 105°C
Size / Dimension
0.394" Dia (10.00mm)
Height - Seated (Max)
0.504" (12.80mm)
Operating Temperature
-55°C ~ 105°C
Surface Mount Land Size
0.406" L x 0.406" W (10.30mm x 10.30mm)
Ripple Current @ Low Frequency
237.5 mA @ 120 Hz
Ripple Current @ High Frequency
4.75 A @ 120 kHz
ESR (Equivalent Series Resistance)
292.6mOhm
| Attribute | Value |
|---|---|
| Type | Polymer |
| Series | UVR |
| Packaging | Tape & Reel (TR) |
| Tolerance | ±20% |
| Capacitance | 680 µF |
| Part Status | Active |
| Applications | Decoupling |
| Manufacturer | Cornell Dubilier Knowles |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Voltage - Rated | 16 V |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.504" (12.80mm) |
| Operating Temperature | -55°C ~ 105°C |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Ripple Current @ Low Frequency | 237.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 4.75 A @ 120 kHz |
| ESR (Equivalent Series Resistance) | 292.6mOhm |
