CorePower Magnetics CPML30MAX

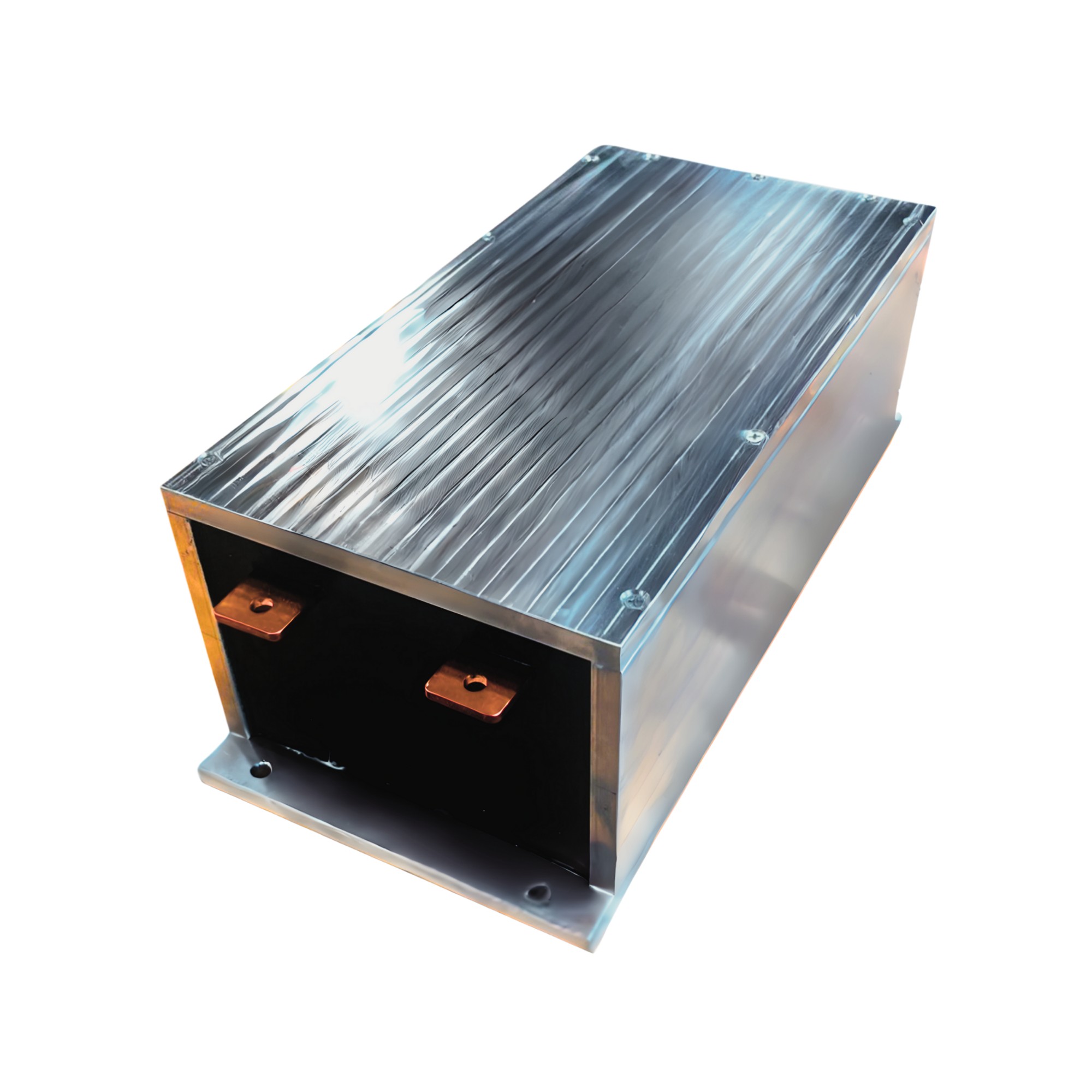

Image shown is a representation only
Manufacturer
Manufacturer No
CPML30MAX
Package
Nonstandard
Packaging
Bulk
Description
FIXED IND 30UH 72A 5.7 MOHM CHAS
Detailed Description
30 µH Semi-Shielded Magnetic Core Inductor 72 A 5.7mOhm Max Nonstandard High Current, Low Loss
DataSheet
Mfr
CorePower Magnetics
Type
Magnetic Core
Features
High Current, Low Loss
Packaging
Bulk
Shielding
Semi-Shielded
Tolerance
±10%
Inductance
30 µH
Part Status
Active
Mounting Type
Chassis Mount
Package / Case
Nonstandard
Material - Core
Nanocrystalline
Size / Dimension
6.750" L x 3.500" W (171.45mm x 88.90mm)
DC Resistance (DCR)
5.7mOhm Max
Current Rating (Amps)
72 A
Height - Seated (Max)
3.031" (77.00mm)
Operating Temperature
-55°C ~ 180°C
Supplier Device Package
Nonstandard, 2 Lead
Frequency - Self Resonant
6MHz
Current - Saturation (Isat)
150A
Inductance Frequency - Test
40 kHz
| Attribute | Value |
|---|---|
| Mfr | CorePower Magnetics |
| Type | Magnetic Core |
| Features | High Current, Low Loss |
| Packaging | Bulk |
| Shielding | Semi-Shielded |
| Tolerance | ±10% |
| Inductance | 30 µH |
| Part Status | Active |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Material - Core | Nanocrystalline |
| Size / Dimension | 6.750" L x 3.500" W (171.45mm x 88.90mm) |
| DC Resistance (DCR) | 5.7mOhm Max |
| Current Rating (Amps) | 72 A |
| Height - Seated (Max) | 3.031" (77.00mm) |
| Operating Temperature | -55°C ~ 180°C |
| Supplier Device Package | Nonstandard, 2 Lead |
| Frequency - Self Resonant | 6MHz |
| Current - Saturation (Isat) | 150A |
| Inductance Frequency - Test | 40 kHz |
