Step1: Product

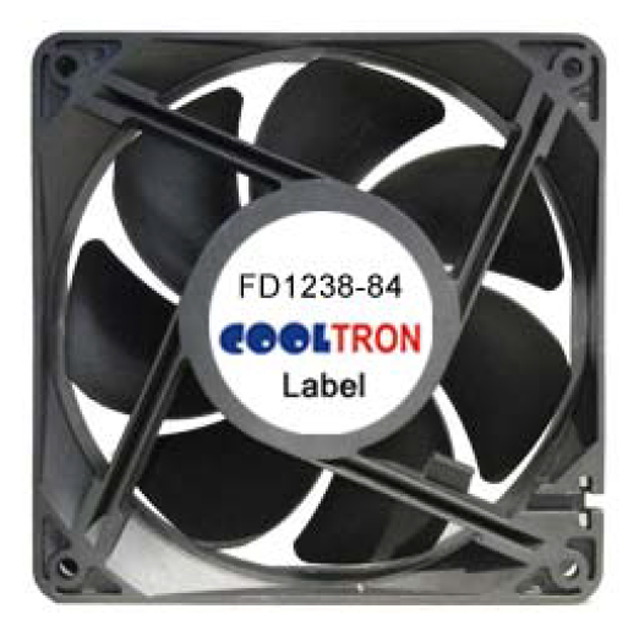

Cooltron Industrial Supply FD1238B48W7-84-4JY
Image shown is a representation only
Manufacturer
Manufacturer No
FD1238B48W7-84-4JY
Packaging
Bulk
Description
DC Fan 120x120x38mm 48VDC
Detailed Description
Fan Tubeaxial 48VDC Square - 120mm L x 120mm H Ball 203.9 CFM (5.71m³/min) 4 Wire Leads
DataSheet
Mfr
Cooltron Industrial Supply
RPM
4600 RPM
Noise
58.6dB(A)
Width
38.00mm
Series
51
Weight
0.827 lb (375.12 g)
Air Flow
203.9 CFM (5.71m³/min)
Fan Type
Tubeaxial
Features
Auto Restart, PWM Control, Speed Sensor (Tach)
Packaging
Bulk
Part Status
Active
Termination
4 Wire Leads
Bearing Type
Ball
Power (Watts)
23.04 W
Voltage Range
30 ~ 55.2VDC
Approval Agency
CE, cUL, TUV, UL
Static Pressure
1.000 in H2O (249.1 Pa)
Voltage - Rated
48VDC
Lifetime @ Temp.
80000 Hrs @ 40°C
Material - Blade
Polybutylene Terephthalate (PBT)
Material - Frame
Polybutylene Terephthalate (PBT)
Size / Dimension
Square - 120mm L x 120mm H
Ingress Protection
IP55 - Dust Protected, Water Resistant
Current Rating (Amps)
0.480A
Operating Temperature
-4 ~ 158°F (-20 ~ 70°C)
| Attribute | Value |
|---|---|
| Mfr | Cooltron Industrial Supply |
| RPM | 4600 RPM |
| Noise | 58.6dB(A) |
| Width | 38.00mm |
| Series | 51 |
| Weight | 0.827 lb (375.12 g) |
| Air Flow | 203.9 CFM (5.71m³/min) |
| Fan Type | Tubeaxial |
| Features | Auto Restart, PWM Control, Speed Sensor (Tach) |
| Packaging | Bulk |
| Part Status | Active |
| Termination | 4 Wire Leads |
| Bearing Type | Ball |
| Power (Watts) | 23.04 W |
| Voltage Range | 30 ~ 55.2VDC |
| Approval Agency | CE, cUL, TUV, UL |
| Static Pressure | 1.000 in H2O (249.1 Pa) |
| Voltage - Rated | 48VDC |
| Lifetime @ Temp. | 80000 Hrs @ 40°C |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Size / Dimension | Square - 120mm L x 120mm H |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Current Rating (Amps) | 0.480A |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
