Step1: Product

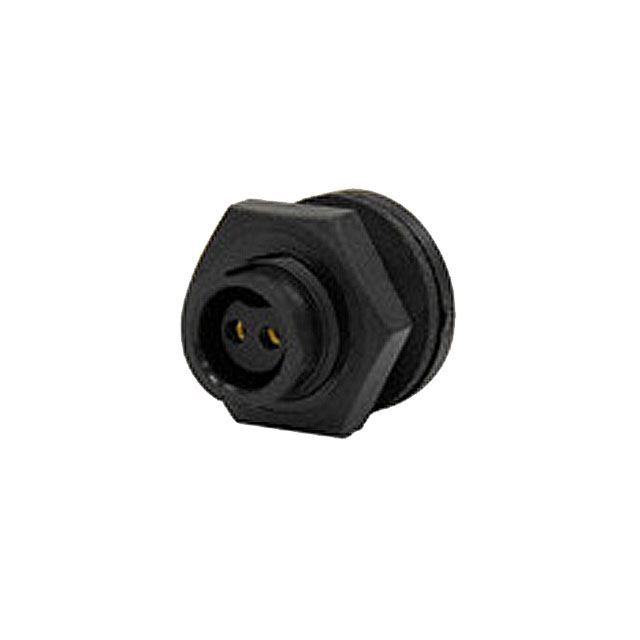

Conxall/Switchcraft W17282-2SG-P-300
Image shown is a representation only
Manufacturer
Manufacturer No
W17282-2SG-P-300
Packaging
Bulk
Description
CONN RCPT FMALE 2POS GOLD SOLDER
Detailed Description
2 Position Circular Connector Receptacle, Female Sockets Solder Cup
DataSheet
Mfr
Conxall/Switchcraft
Color
Black
Series
Micro-Con-X®
Features
UV Resistant
Packaging
Bulk
Shielding
Unshielded
Orientation
Keyed
Part Status
Active
Termination
Solder Cup
Applications
Data, Industrial, Instrumentation, Medical
Mounting Type
Panel Mount
Connector Type
Receptacle, Female Sockets
Fastening Type
Bayonet Lock
Shell Material
Thermoplastic
Voltage Rating
600VAC/DC
Insert Material
Thermoplastic
Contact Material
Copper Alloy
Mounting Feature
Bulkhead - Front Side Nut
Primary Material
Plastic
Base Product Number
W17282
Number of Positions
2
Current Rating (Amps)
7.5A
Operating Temperature
-40°C ~ 80°C
Contact Finish - Mating
Gold
| Attribute | Value |
|---|---|
| Mfr | Conxall/Switchcraft |
| Color | Black |
| Series | Micro-Con-X® |
| Features | UV Resistant |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | Keyed |
| Part Status | Active |
| Termination | Solder Cup |
| Applications | Data, Industrial, Instrumentation, Medical |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Bayonet Lock |
| Shell Material | Thermoplastic |
| Voltage Rating | 600VAC/DC |
| Insert Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Mounting Feature | Bulkhead - Front Side Nut |
| Primary Material | Plastic |
| Base Product Number | W17282 |
| Number of Positions | 2 |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -40°C ~ 80°C |
| Contact Finish - Mating | Gold |
