Step1: Product

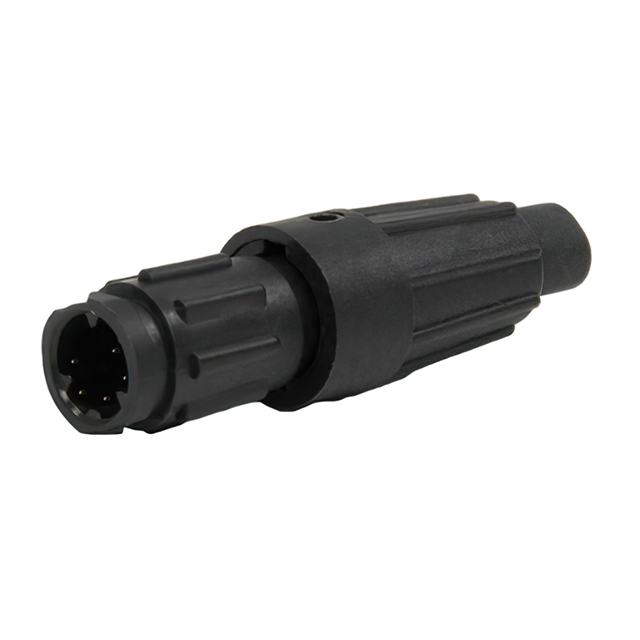

Conxall/Switchcraft 18982-5PG-518
Image shown is a representation only
Manufacturer
Manufacturer No
18982-5PG-518
Packaging
Bulk
Description
MICRO-CON-X CABLE-TO-CABLE, 5-PI
Detailed Description
5 Position Circular Connector Receptacle, Male Pins Solder Cup
DataSheet
Mfr
Conxall/Switchcraft
Color
Black
Series
Micro-Con-X®
Packaging
Bulk
Shielding
Unshielded
Orientation
Keyed
Part Status
Active
Termination
Solder Cup
Applications
Data, Industrial, Instrumentation, Medical
Cable Opening
0.180" ~ 0.200" (4.57mm ~ 5.08mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Receptacle, Male Pins
Fastening Type
Bayonet Lock
Shell Material
Thermoplastic
Voltage Rating
600VAC/DC
Insert Material
Thermoplastic
Contact Material
Copper Alloy
Primary Material
Plastic
Ingress Protection
Weathertight
Number of Positions
5
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-40°C ~ 85°C
Contact Finish - Mating
Gold
Material Flammability Rating
UL94 HB
| Attribute | Value |
|---|---|
| Mfr | Conxall/Switchcraft |
| Color | Black |
| Series | Micro-Con-X® |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | Keyed |
| Part Status | Active |
| Termination | Solder Cup |
| Applications | Data, Industrial, Instrumentation, Medical |
| Cable Opening | 0.180" ~ 0.200" (4.57mm ~ 5.08mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Bayonet Lock |
| Shell Material | Thermoplastic |
| Voltage Rating | 600VAC/DC |
| Insert Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Primary Material | Plastic |
| Ingress Protection | Weathertight |
| Number of Positions | 5 |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Material Flammability Rating | UL94 HB |
