Step1: Product
Comchip Technology SMF85CA-HF

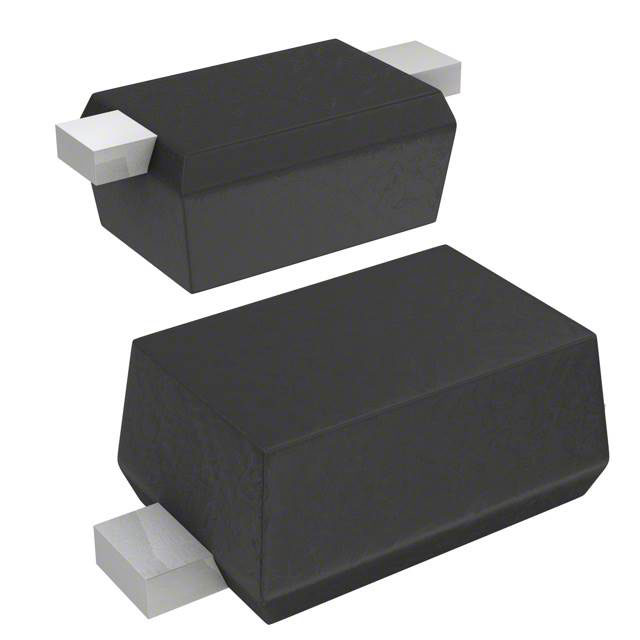

Image shown is a representation only
Manufacturer
Manufacturer No
SMF85CA-HF
Package
SOD-123F
Packaging
Tape & Reel (TR)
Description
TVS DIODE 85VWM 137VC SOD123FL
Detailed Description
137V Clamp 1.46A Ipp Tvs Diode Surface Mount SOD-123FL
DataSheet
Mfr
Comchip Technology
Type
Zener
Series
SMF-HF
Packaging
Tape & Reel (TR)
Part Status
Active
Applications
General Purpose
Mounting Type
Surface Mount
Package / Case
SOD-123F
Power - Peak Pulse
200W
Operating Temperature
-55°C ~ 150°C (TJ)
Power Line Protection
No
Bidirectional Channels
1
Supplier Device Package
SOD-123FL
Voltage - Breakdown (Min)
94.4V
Voltage - Clamping (Max) @ Ipp
137V
Voltage - Reverse Standoff (Typ)
85V
Current - Peak Pulse (10/1000µs)
1.46A
| Attribute | Value |
|---|---|
| Mfr | Comchip Technology |
| Type | Zener |
| Series | SMF-HF |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123F |
| Power - Peak Pulse | 200W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Power Line Protection | No |
| Bidirectional Channels | 1 |
| Supplier Device Package | SOD-123FL |
| Voltage - Breakdown (Min) | 94.4V |
| Voltage - Clamping (Max) @ Ipp | 137V |
| Voltage - Reverse Standoff (Typ) | 85V |
| Current - Peak Pulse (10/1000µs) | 1.46A |
