Step1: Product

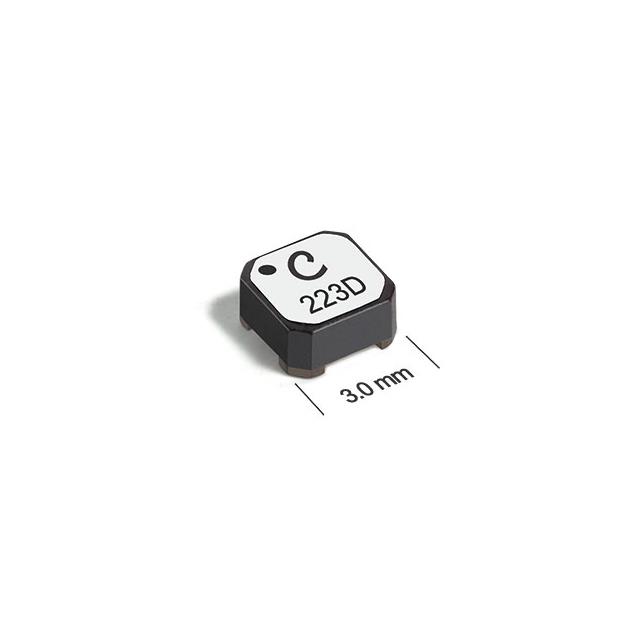

Coilcraft LPD3015-334MRC
Image shown is a representation only
Manufacturer
Manufacturer No
LPD3015-334MRC
Package
Nonstandard
Packaging
Strip
Description
FIXED IND 330UH 100MA 27.7OHM SM
Detailed Description
Shielded Coil Inductor Array Inductance - Connected in Series 330 µH Inductance - Connected in Parallel DC Resistance (DCR) - Parallel 100 mA Nonstandard
Datasheet
Height
0.059" (1.50mm)
Series
LPD3015
Packaging
Strip
Shielding
Shielded
Tolerance
±20%
Manufacturer
Coilcraft
Mounting Type
Surface Mount
Package / Case
Nonstandard
Size / Dimension
0.118" L x 0.118" W (3.00mm x 3.00mm)
Operating Temperature
-40°C ~ 85°C
Current Rating - Parallel
100 mA
Current Saturation - Series
120 mA
Current Saturation - Parallel
120 mA
Inductance - Connected In Parallel
330 µH
| Attribute | Value |
|---|---|
| Height | 0.059" (1.50mm) |
| Series | LPD3015 |
| Packaging | Strip |
| Shielding | Shielded |
| Tolerance | ±20% |
| Manufacturer | Coilcraft |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Current Rating - Parallel | 100 mA |
| Current Saturation - Series | 120 mA |
| Current Saturation - Parallel | 120 mA |
| Inductance - Connected In Parallel | 330 µH |
