Coilcraft 0402DC-20NXJRW

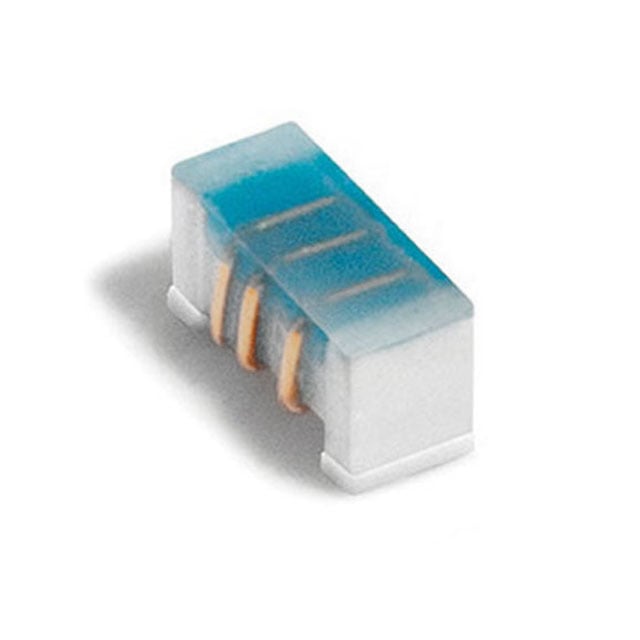

Image shown is a representation only
Manufacturer
Manufacturer No
0402DC-20NXJRW
Package
0402 (1005 Metric)
Packaging
Bulk
Description
FIXED IND 20NH 1A 162.7 MOHM SMD
Detailed Description
20 nH Unshielded Wirewound Inductor 1 A 162.7mOhm Max 0402 (1005 Metric)
DataSheet
Mfr
Coilcraft
Type
Wirewound
Series
0402DC
Ratings
AEC-Q200
Q @ Freq
67 @ 900MHz
Packaging
Bulk
Shielding
Unshielded
Tolerance
±5%
Inductance
20 nH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
0402 (1005 Metric)
Material - Core
Ceramic
Size / Dimension
0.044" L x 0.026" W (1.11mm x 0.66mm)
DC Resistance (DCR)
162.7mOhm Max
Current Rating (Amps)
1 A
Height - Seated (Max)
0.026" (0.65mm)
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
0402
Frequency - Self Resonant
5.11GHz
Inductance Frequency - Test
250 MHz
| Attribute | Value |
|---|---|
| Mfr | Coilcraft |
| Type | Wirewound |
| Series | 0402DC |
| Ratings | AEC-Q200 |
| Q @ Freq | 67 @ 900MHz |
| Packaging | Bulk |
| Shielding | Unshielded |
| Tolerance | ±5% |
| Inductance | 20 nH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Material - Core | Ceramic |
| Size / Dimension | 0.044" L x 0.026" W (1.11mm x 0.66mm) |
| DC Resistance (DCR) | 162.7mOhm Max |
| Current Rating (Amps) | 1 A |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 0402 |
| Frequency - Self Resonant | 5.11GHz |
| Inductance Frequency - Test | 250 MHz |
