Step1: Product

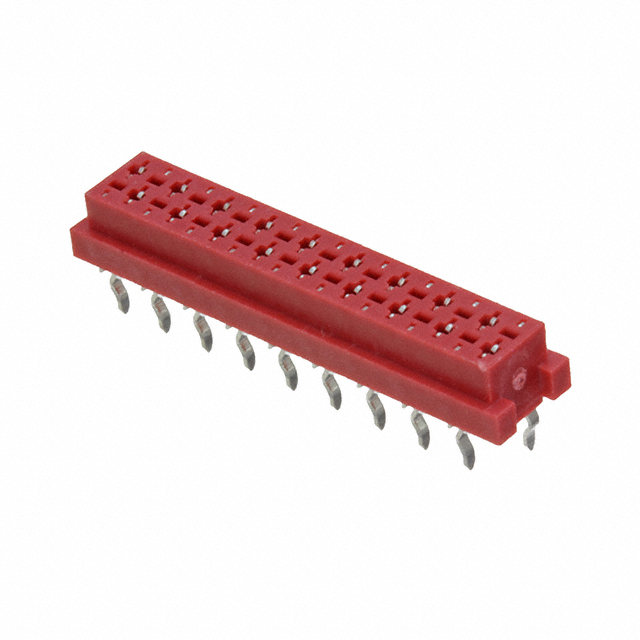

CNC Tech 3521-18-0100-99
Image shown is a representation only
Manufacturer
Manufacturer No
3521-18-0100-99
Packaging
Tube
Description
CONN RCPT 18POS 0.1 TIN PCB
Detailed Description
18 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
Datasheet
Mfr
CNC Tech
Style
Board to Board or Cable
Packaging
Tube
Termination
Kinked Pin, Solder
Contact Type
Forked
Mounting Type
Through Hole
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
500V
Contact Material
Bronze
Insulation Color
Red
Insulation Height
0.157" (4.00mm)
Base Product Number
3521
Insulation Material
Polyamide (PA9T), Nylon 9T
Number of Positions
18
Contact Finish - Post
Tin
Current Rating (Amps)
1A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | CNC Tech |
| Style | Board to Board or Cable |
| Packaging | Tube |
| Termination | Kinked Pin, Solder |
| Contact Type | Forked |
| Mounting Type | Through Hole |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 500V |
| Contact Material | Bronze |
| Insulation Color | Red |
| Insulation Height | 0.157" (4.00mm) |
| Base Product Number | 3521 |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Number of Positions | 18 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 1A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
