Step1: Product

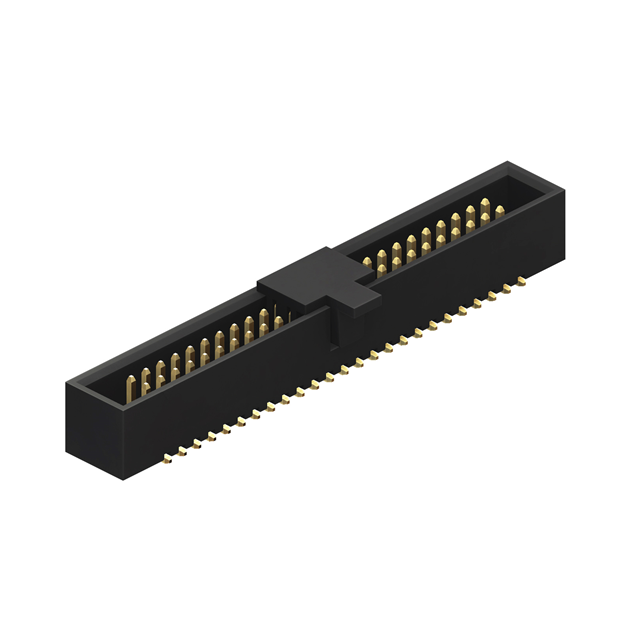

CNC Tech 3220-50-0300-00-TR
Image shown is a representation only
Manufacturer
Manufacturer No
3220-50-0300-00-TR
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IDC BOX HEADER, 0.050" (1.27MM),
Detailed Description
Connector Header Surface Mount 50 position 0.050" (1.27mm)
DataSheet
Mfr
CNC Tech
Style
Board to Cable/Wire
Features
Keying Slot, Pick and Place
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.050" (1.27mm)
Voltage Rating
50VAC/DC
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.213" (5.40mm)
Base Product Number
3220-50
Insulation Material
Polyamide (PA9T), Nylon 9T
Number of Positions
50
Row Spacing - Mating
0.050" (1.27mm)
Contact Finish - Post
Gold
Current Rating (Amps)
1A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
Flash
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | CNC Tech |
| Style | Board to Cable/Wire |
| Features | Keying Slot, Pick and Place |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.050" (1.27mm) |
| Voltage Rating | 50VAC/DC |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.213" (5.40mm) |
| Base Product Number | 3220-50 |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Number of Positions | 50 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | 1A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash |
