Step1: Product
CNC Tech 3110-14-003-13-00-TR

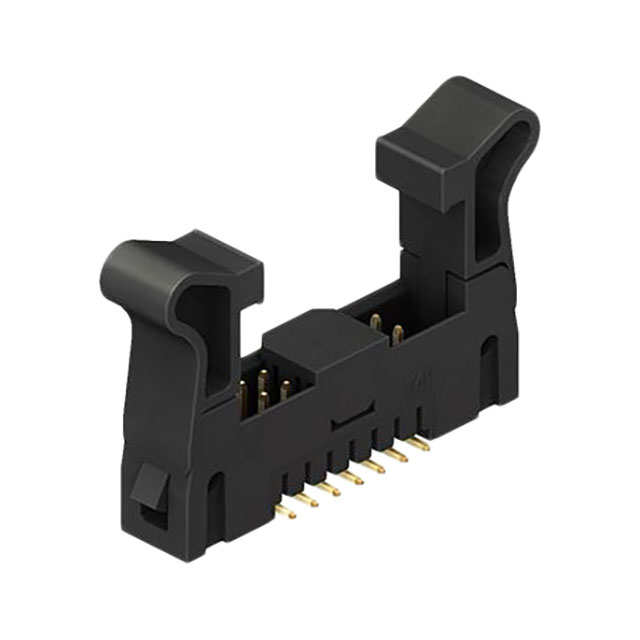

Image shown is a representation only
Manufacturer
Manufacturer No
3110-14-003-13-00-TR
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
HEADER, 0.079" (2.00MM), 14 POS.
Detailed Description
Connector Header Surface Mount 14 position 0.079" (2.00mm)
DataSheet
Mfr
CNC Tech
Style
Board to Cable/Wire
Features
Keying Slot
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Latch Lock/Eject Hooks, Long
Number of Rows
2
Pitch - Mating
0.079" (2.00mm)
Contact Material
Brass
Base Product Number
3110-14
Insulation Material
Polybutylene Terephthalate (PBT)
Number of Positions
14
Row Spacing - Mating
0.079" (2.00mm)
Current Rating (Amps)
1A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | CNC Tech |
| Style | Board to Cable/Wire |
| Features | Keying Slot |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Latch Lock/Eject Hooks, Long |
| Number of Rows | 2 |
| Pitch - Mating | 0.079" (2.00mm) |
| Contact Material | Brass |
| Base Product Number | 3110-14 |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 14 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Current Rating (Amps) | 1A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | Flash |
