Step1: Product

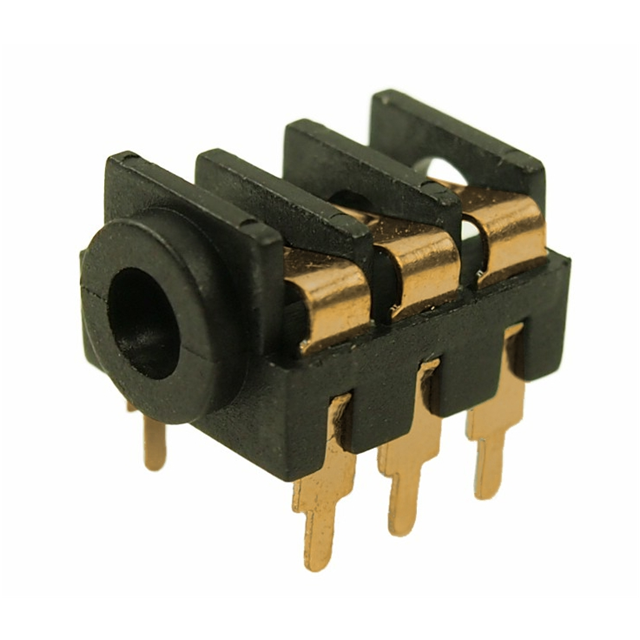

CLIFF Electronic Components Ltd FCR1295G
Image shown is a representation only
Manufacturer
Manufacturer No
FCR1295G
Packaging
Bulk
Description
S9 BBB GOLD STEREO JACK 6MMPCB
Detailed Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
DataSheet
Mfr
CLIFF Electronic Components Ltd
Gender
Female
Series
S9
Packaging
Bulk
Shielding
Unshielded
Body Color
Black
Part Status
Active
Termination
Solder
Signal Lines
Stereo (3 Conductor, TRS)
Mounting Type
Through Hole, Right Angle
Connector Type
Phone Jack
Actual Diameter
0.146" (3.70mm)
Contact Material
Nickel Silver Alloy
Housing Material
Polyamide (PA), Nylon
Internal Switch(s)
Three Switches
Current Rating (Amps)
5 A
Operating Temperature
-10°C ~ 70°C
Contact Material - Plating
Gold
Number of Positions/Contacts
3 Conductors, 6 Contacts
Industry Recognized Mating Diameter
3.50mm (0.141", 1/8", Mini Plug) - Headphone
| Attribute | Value |
|---|---|
| Mfr | CLIFF Electronic Components Ltd |
| Gender | Female |
| Series | S9 |
| Packaging | Bulk |
| Shielding | Unshielded |
| Body Color | Black |
| Part Status | Active |
| Termination | Solder |
| Signal Lines | Stereo (3 Conductor, TRS) |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Phone Jack |
| Actual Diameter | 0.146" (3.70mm) |
| Contact Material | Nickel Silver Alloy |
| Housing Material | Polyamide (PA), Nylon |
| Internal Switch(s) | Three Switches |
| Current Rating (Amps) | 5 A |
| Operating Temperature | -10°C ~ 70°C |
| Contact Material - Plating | Gold |
| Number of Positions/Contacts | 3 Conductors, 6 Contacts |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
