Step1: Product

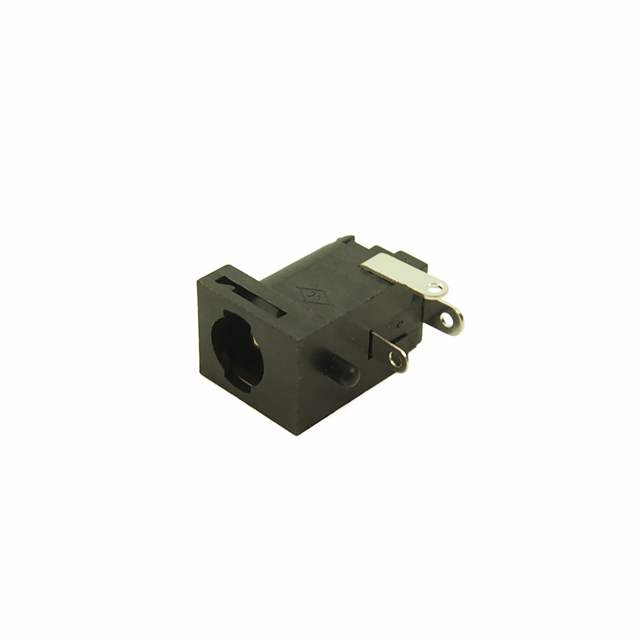

CLIFF Electronic Components Ltd FC681477
Image shown is a representation only
Manufacturer
Manufacturer No
FC681477
Packaging
Bulk
Description
LOCKING DC SOCKET 2.5MM
Detailed Description
Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole, Right Angle
DataSheet
Gender
Male
Features
Board Guide, Cover
Packaging
Bulk
Shielding
Unshielded
Body Color
Black
Part Status
Active
Termination
Solder Eyelet(s)
Manufacturer
CLIFF Electronic Components Ltd
Mounting Type
Through Hole, Right Angle
Connector Type
Jack
Actual Diameter
0.079" (2.00mm ID), 0.230" (5.85mm OD)
Voltage - Rated
16VDC
Contact Material
Brass, Phosphor Bronze
Housing Material
Polybutylene Terephthalate (PBT), Glass Filled
Internal Switch(s)
Single Switch, Normally Closed
Current Rating (Amps)
2 A
Contact Material - Plating
Silver
Number of Positions/Contacts
2 Conductors, 3 Contacts
Industry Recognized Mating Diameter
2.50mm ID (0.098"), 5.50mm OD (0.217")
| Attribute | Value |
|---|---|
| Gender | Male |
| Features | Board Guide, Cover |
| Packaging | Bulk |
| Shielding | Unshielded |
| Body Color | Black |
| Part Status | Active |
| Termination | Solder Eyelet(s) |
| Manufacturer | CLIFF Electronic Components Ltd |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Jack |
| Actual Diameter | 0.079" (2.00mm ID), 0.230" (5.85mm OD) |
| Voltage - Rated | 16VDC |
| Contact Material | Brass, Phosphor Bronze |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Internal Switch(s) | Single Switch, Normally Closed |
| Current Rating (Amps) | 2 A |
| Contact Material - Plating | Silver |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
