Step1: Product

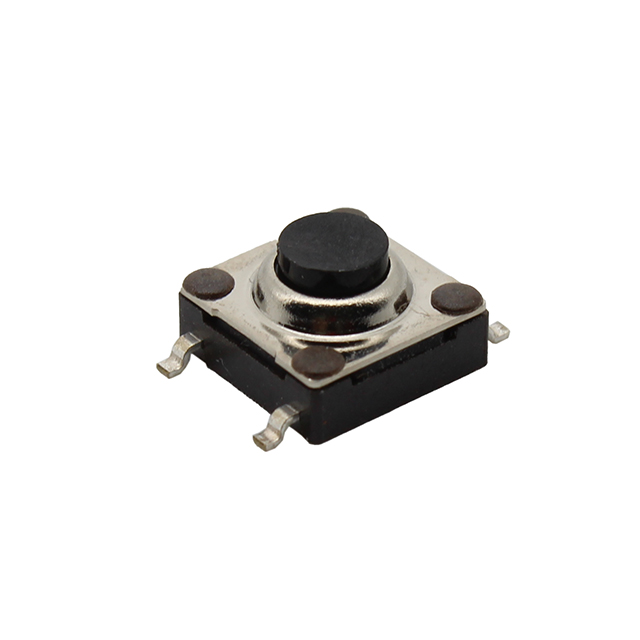

CIT Relay and Switch STS4.3LF200QG

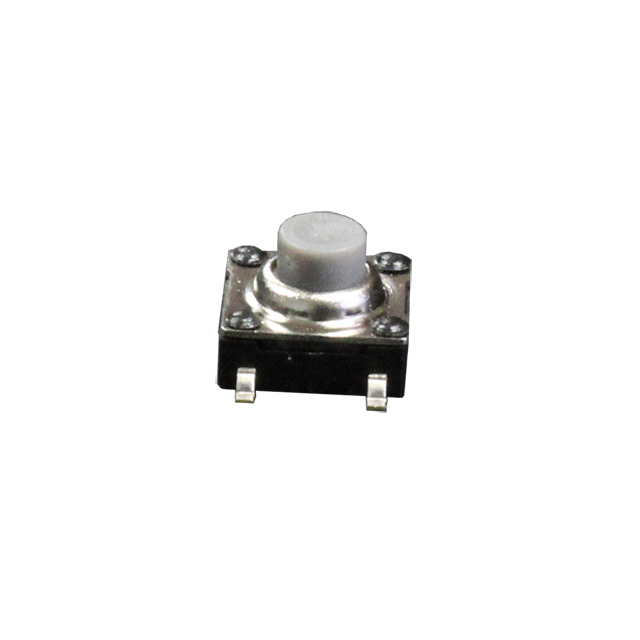

Image shown is a representation only
Manufacturer
Manufacturer No
STS4.3LF200QG
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
SWITCH TACTILE SPST-NO 0.05A 48V
Detailed Description
Tactile Switch SPST-NO Top Actuated Surface Mount
DataSheet
Mfr
CIT Relay and Switch
Series
STS
Circuit
SPST-NO
Outline
7.20mm x 7.20mm
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Illumination
Non-Illuminated
Actuator Type
Standard
Mounting Type
Surface Mount
Switch Travel
0.45mm
Operating Force
200gf
Switch Function
Off-Mom
Actuator Material
Polyamide (PA6T), Nylon 6T
Termination Style
Gull Wing
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
STS4.3
Actuator Orientation
Top Actuated
Operating Temperature
-40°C ~ 85°C
Contact Rating @ Voltage
0.05A @ 48VDC
Actuator Height off PCB, Vertical
4.30mm
| Attribute | Value |
|---|---|
| Mfr | CIT Relay and Switch |
| Series | STS |
| Circuit | SPST-NO |
| Outline | 7.20mm x 7.20mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Actuator Type | Standard |
| Mounting Type | Surface Mount |
| Switch Travel | 0.45mm |
| Operating Force | 200gf |
| Switch Function | Off-Mom |
| Actuator Material | Polyamide (PA6T), Nylon 6T |
| Termination Style | Gull Wing |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | STS4.3 |
| Actuator Orientation | Top Actuated |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating @ Voltage | 0.05A @ 48VDC |
| Actuator Height off PCB, Vertical | 4.30mm |
