Step1: Product

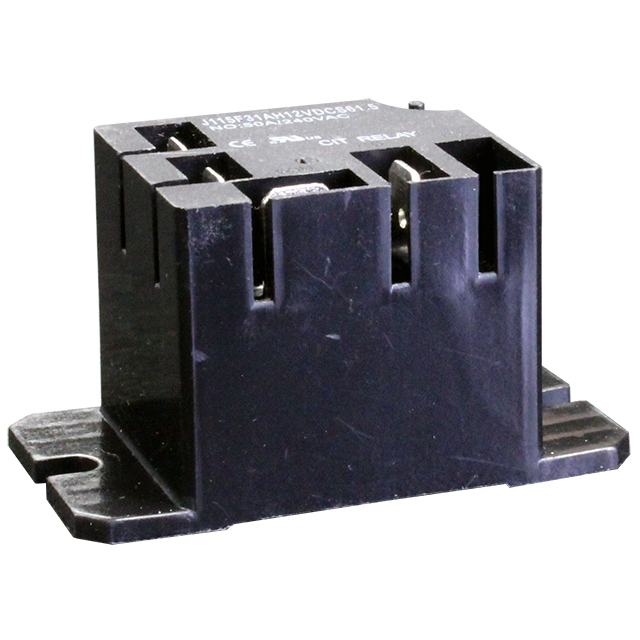

CIT Relay and Switch J115F31AH12VDCS61.5U
Image shown is a representation only
Manufacturer
Manufacturer No
J115F31AH12VDCS61.5U
Packaging
Tray
Description
RELAY GEN PURPOSE SPST 50A 12V
Detailed Description
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Chassis Mount
DataSheet
Mfr
CIT Relay and Switch
Series
J115F
Coil Type
Non Latching
Packaging
Tray
Relay Type
General Purpose
Part Status
Active
Seal Rating
Sealed - Fully
Coil Current
125 mA
Coil Voltage
12VDC
Contact Form
SPST-NO (1 Form A)
Operate Time
15 ms
Release Time
10 ms
Mounting Type
Chassis Mount
Approval Agency
cURus
Coil Insulation
Class F
Coil Resistance
96 Ohms
Contact Material
Silver Tin Oxide Indium Oxide (AgSnOInO)
Switching Voltage
277VAC, 110VDC - Max
Termination Style
Quick Connect - 0.187"/0.250"
Base Product Number
J115F31
Load - Max Switching
13850VA, 5500W
Must Operate Voltage
9 VDC
Must Release Voltage
1.2 VDC
Operating Temperature
-55°C ~ 125°C
Contact Rating (Current)
50 A
| Attribute | Value |
|---|---|
| Mfr | CIT Relay and Switch |
| Series | J115F |
| Coil Type | Non Latching |
| Packaging | Tray |
| Relay Type | General Purpose |
| Part Status | Active |
| Seal Rating | Sealed - Fully |
| Coil Current | 125 mA |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Mounting Type | Chassis Mount |
| Approval Agency | cURus |
| Coil Insulation | Class F |
| Coil Resistance | 96 Ohms |
| Contact Material | Silver Tin Oxide Indium Oxide (AgSnOInO) |
| Switching Voltage | 277VAC, 110VDC - Max |
| Termination Style | Quick Connect - 0.187"/0.250" |
| Base Product Number | J115F31 |
| Load - Max Switching | 13850VA, 5500W |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operating Temperature | -55°C ~ 125°C |
| Contact Rating (Current) | 50 A |
