Step1: Product

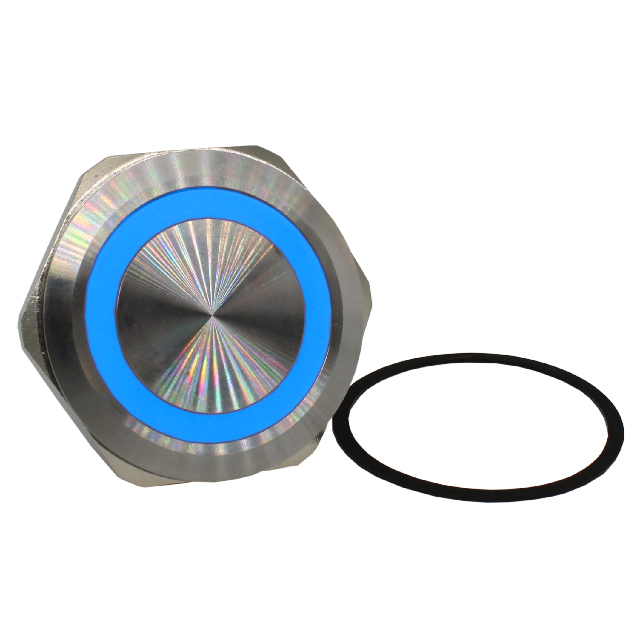

CIT Relay and Switch DH402NBSB12
Image shown is a representation only
Manufacturer
Manufacturer No
DH402NBSB12
Packaging
Tray
Description
SWITCH PB DPST-NO/NC 2A 125VAC
Detailed Description
Pushbutton Switch DPST-NO/NC Anti-Vandal, Illuminated Panel Mount, Front
DataSheet
Mfr
CIT Relay and Switch
Type
Anti-Vandal, Illuminated
Series
DH40
Circuit
DPST-NO/NC
Features
Stainless Steel
Packaging
Tray
Part Status
Active
Actuator Type
Round, Button, Flush
Mounting Type
Panel Mount, Front
Electrical Life
50,000 Cycles
Mechanical Life
50,000 Cycles
Switch Function
On-Mom, Off-Mom
Termination Style
Solder, Quick Connect - 0.110" (2.8mm)
Ingress Protection
IP67 - Dust Tight, Waterproof
Voltage Rating - AC
125 V
Voltage Rating - DC
24 V
Color - Actuator/Cap
Silver
Current Rating (Amps)
2A (AC/DC)
Operating Temperature
-25°C ~ 70°C
Panel Cutout Dimensions
Circular - 40.00mm Dia
Illumination Type, Color
LED, Blue
Illumination Voltage (Nominal)
12 VDC
| Attribute | Value |
|---|---|
| Mfr | CIT Relay and Switch |
| Type | Anti-Vandal, Illuminated |
| Series | DH40 |
| Circuit | DPST-NO/NC |
| Features | Stainless Steel |
| Packaging | Tray |
| Part Status | Active |
| Actuator Type | Round, Button, Flush |
| Mounting Type | Panel Mount, Front |
| Electrical Life | 50,000 Cycles |
| Mechanical Life | 50,000 Cycles |
| Switch Function | On-Mom, Off-Mom |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 24 V |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 2A (AC/DC) |
| Operating Temperature | -25°C ~ 70°C |
| Panel Cutout Dimensions | Circular - 40.00mm Dia |
| Illumination Type, Color | LED, Blue |
| Illumination Voltage (Nominal) | 12 VDC |
